ABB 5SDD65H2400
Rectifier Diode
| Part No. | 5SDD65H2400 |
|---|---|
| Datasheet | 5SDD65H2400 Download |
| Manufacturer |  ABB |
| Description | Rectifier Diode |
| Buy | Stock & Price |
KEY PARAMETERS
VRRM = 2 400 V IFAVm = 6 520 A IFSM = 59 000 A VTO = 0.870 V rT = 0.057 m: Types 5SDD 65H2400 Conditions: VRRM 2 400 V Tj = 0 ÷ 190 °C, half sine waveform, f = 50 Hz Fm Mounting force m Weight DS Surface creepage distance Da Air strike distanceMECHANICAL DATA
50 ± 5 kN 0.9 kg 40 mm 20 mmMAXIMUM RATINGS

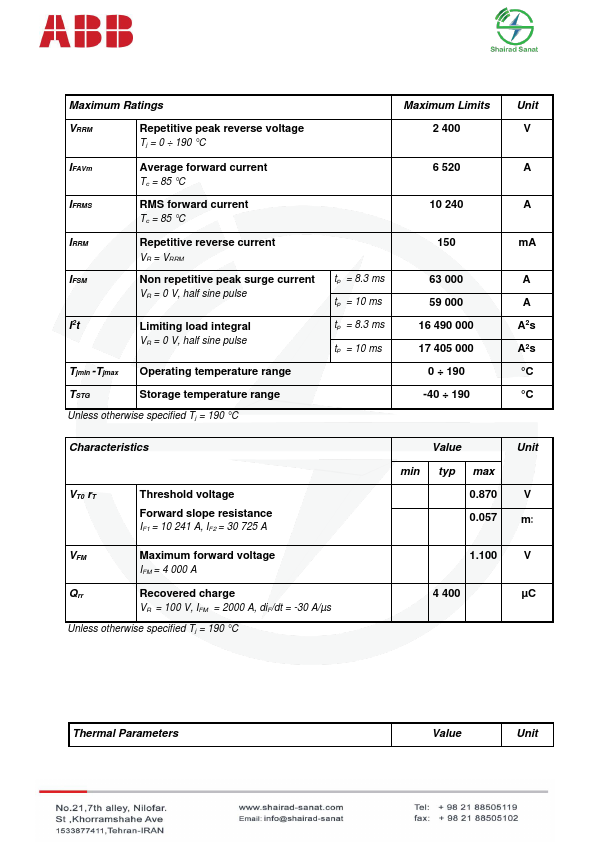

VRRM Repetitive peak reverse voltage Tj = 0 ÷ 190 °C IFAVm Average forward current Tc = 85 °C IFRMS RMS forward current Tc = 85 °C IRRM Repetitive reverse current VR = VRRM IFSM Non repetitive peak surge current VR = 0 V, half sine pulse I2t Limiting load integral VR = 0 V, half sine pulse Tjmin -Tjmax Operating temperature range TSTG Storage temperature range Unless otherwise specified Tj = 190 °C tp = 8.3 ms tp = 10 ms tp = 8.3 ms tp = 10 ms Maximum Limits 2 400 6 520 10 240 150 63 000 59 000 16 490 000 17 405 000 0 ÷ 190 -40 ÷ 190 Unit V A A mA A A A2s A2s °C °C Characteristics VT0 rT Threshold voltage Forward slope resistance IF1 = 10 241 A, IF2 = 30 725 A VFM Maximu...
