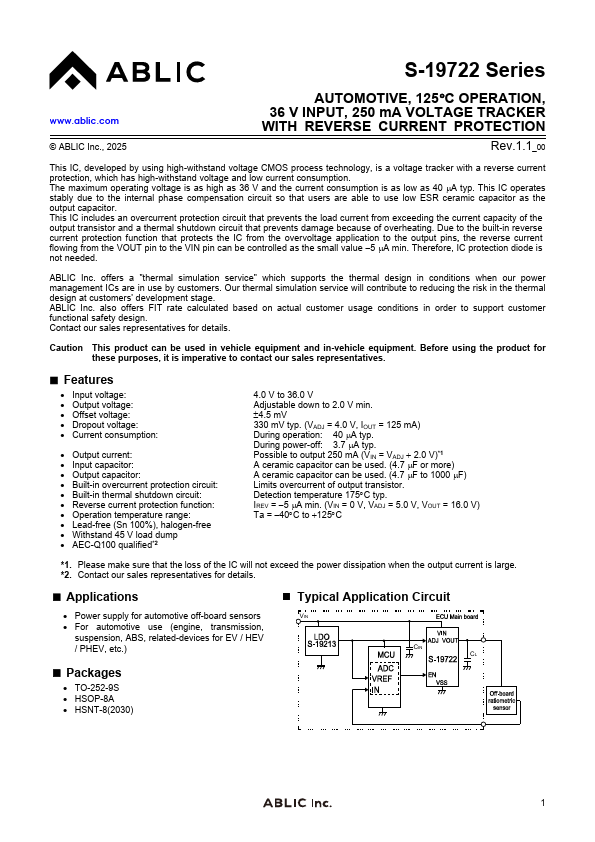

ABLIC S-19722
The NC pin is electrically open. The NC pin can be connected to the| Part No. | S-19722 |
|---|---|
| Datasheet | S-19722 Download |
| Manufacturer |  ABLIC |
| Description | 250mA VOLTAGE TRACKER |
| Buy | Stock & Price |
FEATURES
● Input voltage:● Output voltage:
● Offset voltage:
● Dropout voltage:
● Current consumption:
● Output current:
● Input capacitor:
● Output capacitor:
● Built-in overcurrent protection circuit:
● Built-in thermal shutdown circuit:
● Reverse current protection function:
● Operation temperature range:
● Lead-free (Sn 100%), halogen-free
● Withstand 45 V load dump
● AEC-Q100 qualified*2 4.0 V to 36.0 V Adjustable down to 2.0 V min. ±4.5 mV 330 mV typ. (VADJ = 4.0 V, IOUT = 125 mA) During operation: 40 µA typ. During power-off: 3.7 µA typ. Possible to output 250 mA (VIN = VADJ + 2.0 V)*1 A ceramic capacitor can be used. (4.7 µF or more) A ceramic capacitor can be used. (4.7 µF to 1000 µF) Limits overcurrent of output transistor. Detection temperature 175°C typ. IREV = −5 µA min. (VIN = 0 V, VADJ = 5.0 V, VOUT = 16.0 V) Ta = −40°C to +125°C *1. Please make sure that the loss of the IC will not exceed the power dissipation when the output current is large. *2. Contact our sales representatives for details.
