ABLIC S-35720

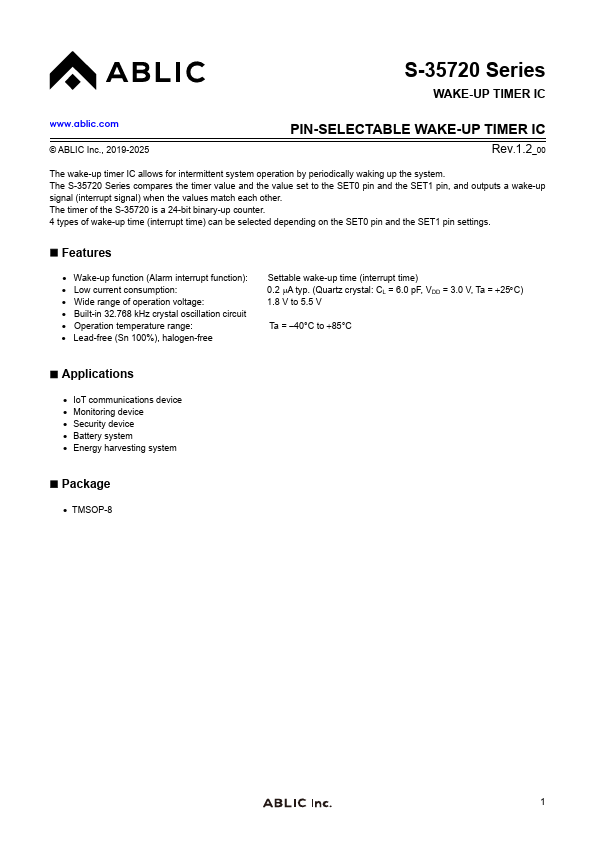

The S-35720 Series compares the timer value and the value set to the SET0 pin and the SET1 pin, and outputs a wake-up signal (interrupt signal) when the values match each other. The timer of the S-35720 is a 24-bit binary-up counter. After the RST pin changes from "L" to "H", the S-35720 Series takes the values set to the SET0 pin and the SET1 pin.| Part No. | S-35720 |
|---|---|
| Datasheet | S-35720 Download |
| Manufacturer |  ABLIC |
| Description | PIN-SELECTABLE WAKE-UP TIMER |
| Buy | Stock & Price |
FEATURES
● Wake-up function (Alarm interrupt function):● Low current consumption:
● Wide range of operation voltage:
● Built-in 32.768 kHz crystal oscillation circuit
● Operation temperature range:
● Lead-free (Sn 100%), halogen-free Settable wake-up time (interrupt time) 0.2 µA typ. (Quartz crystal: CL = 6.0 pF, VDD = 3.0 V, Ta = +25°C) 1.8 V to 5.5 V Ta = −40°C to +85°C
●
APPLICATIONS
● IoT communications device● Monitoring device
● Security device
● Battery system
● Energy harvesting system
● Package
● TMSOP-8 1 WAKE-UP TIMER IC PIN-SELECTABLE WAKE-UP TIMER IC S-35720 Series
● Block Diagram RST XIN XOUT VDD VSS Pull-up Oscillation circuit Divider, Timing generator Chattering elimination circuit INT pin controller Internal reset signal Power-on detection circuit Constant voltage circuit Timer (24-bit) Comparator Interrupt time setting registor Figure 1 Rev.1.2_00 INT SET0 SET1 2 Rev.1.2_00 WAKE-UP TIMER IC PIN-SELECTABLE WAKE-UP TIMER IC S-35720 Series
● Product Name Structure 1. Product name S-35720 C xx I - K8T2 U *1.
