ABLIC S-8216A

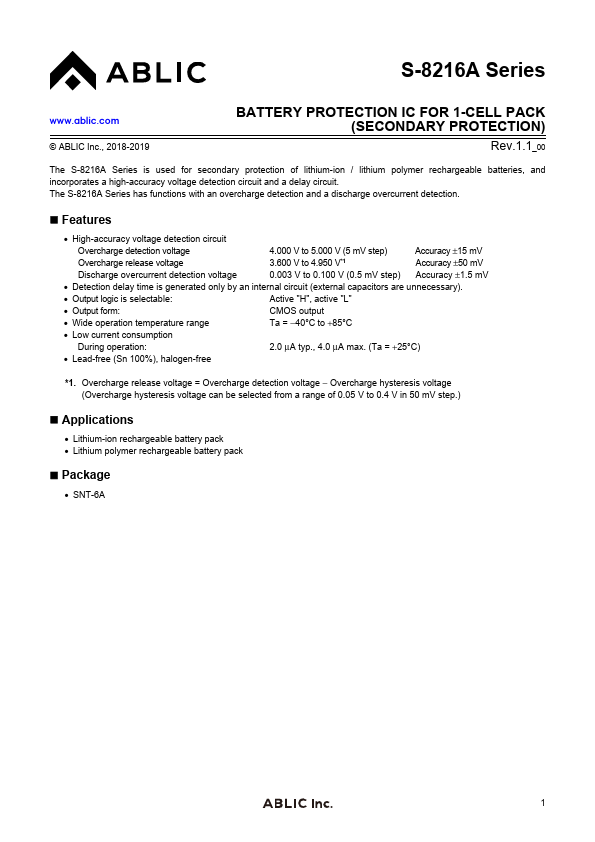

The S-8216A Series is used for secondary protection of lithium-ion / lithium polymer rechargeable batteries, and incorporates a high-accuracy voltage detection circuit and a delay circuit. The S-8216A Series has functions with an overcharge detection and a discharge overcurrent detection.| Part No. | S-8216A |
|---|---|
| Datasheet | S-8216A Download |
| Manufacturer |  ABLIC |
| Description | Battery Protection |
| Buy | Stock & Price |
FEATURES
● High-accuracy voltage detection circuit Overcharge detection voltage 4.000 V to 5.000 V (5 mV step) Accuracy ±15 mV Overcharge release voltage 3.600 V to 4.950 V*1 Accuracy ±50 mV Discharge overcurrent detection voltage 0.003 V to 0.100 V (0.5 mV step) Accuracy ±1.5 mV● Detection delay time is generated only by an internal circuit (external capacitors are unnecessary).
● Output logic is selectable: Active "H", active "L"
● Output form: CMOS output
● Wide operation temperature range Ta = −40°C to +85°C
● Low current consumption During operation: 2.0 μA typ., 4.0 μA max. (Ta = +25°C)
● Lead-free (Sn 100%), halogen-free *1. Overcharge release voltage = Overcharge detection voltage − Overcharge hysteresis voltage (Overcharge hysteresis voltage can be selected from a range of 0.05 V to 0.4 V in 50 mV step.)
●
APPLICATIONS
● Lithium-ion rechargeable battery pack● Lithium polymer rechargeable battery pack
● Package
● SNT-6A 1 BATTERY PROTECTION IC FOR 1-CELL PACK (SECONDARY PROTECTION) S-8216A Series Rev.1.1_00

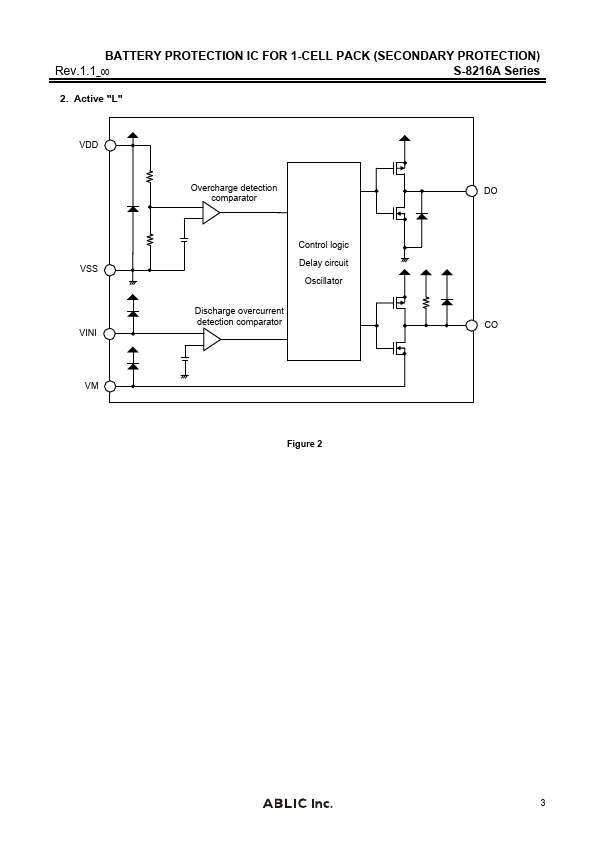

● Block Diagram 1.
