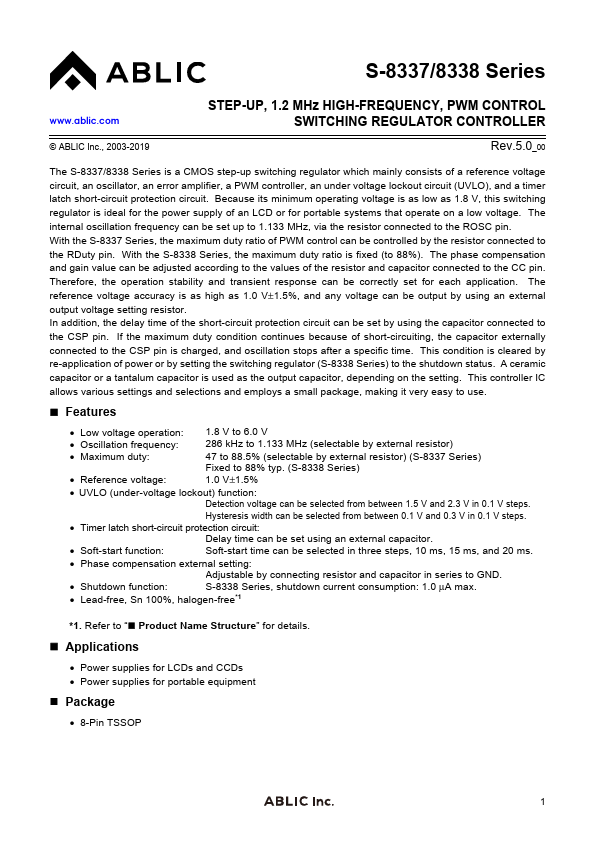

ABLIC S-8337
the S-8337 Series, the maximum duty ratio of PWM control can be controlled by the resistor connected to the RDuty pin. With the S-8338 Series, the maximum duty ratio is fixed (to 88%). The phase compensation and gain value can be adjusted according to the values of the resistor and capacitor connected to the CC pin.| Part No. | S-8337 |
|---|---|
| Datasheet | S-8337 Download |
| Manufacturer |  ABLIC |
| Description | SWITCHING REGULATOR CONTROLLER |
| Buy | Stock & Price |
FEATURES
● Low voltage operation: 1.8 V to 6.0 V● Oscillation frequency: 286 kHz to 1.133 MHz (selectable by external resistor)
● Maximum duty: 47 to 88.5% (selectable by external resistor) (S-8337 Series) Fixed to 88% typ. (S-8338 Series)
● Reference voltage: 1.0 V±1.5%
● UVLO (under-voltage lockout) function: Detection voltage can be selected from between 1.5 V and 2.3 V in 0.1 V steps. Hysteresis width can be selected from between 0.1 V and 0.3 V in 0.1 V steps.
● Timer latch short-circuit protection circuit: Delay time can be set using an external capacitor.
● Soft-start function: Soft-start time can be selected in three steps, 10 ms, 15 ms, and 20 ms.
● Phase compensation external setting: Adjustable by connecting resistor and capacitor in series to GND.
● Shutdown function: S-8338 Series, shutdown current consumption: 1.0 μA max.

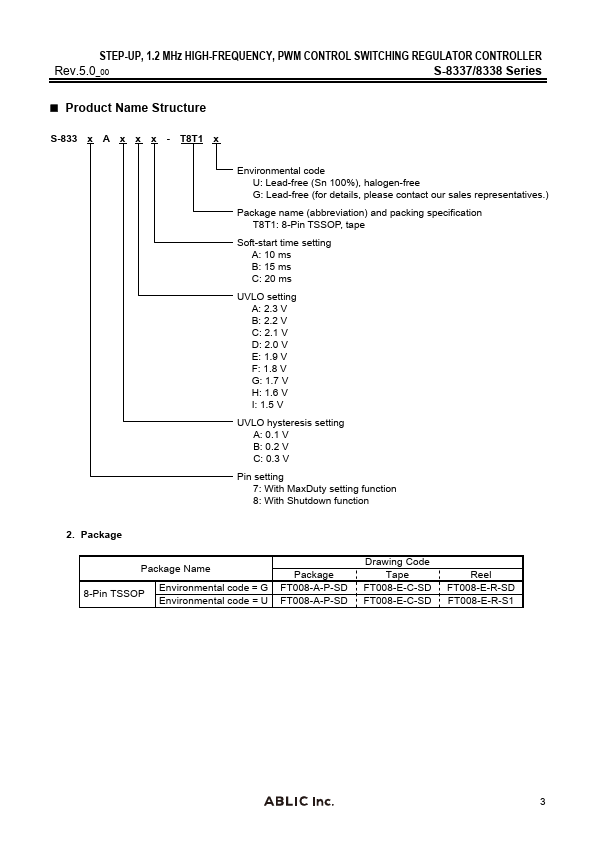

● Lead-free, Sn 100%, halogen-free*1 *1. Refer to “● Product Name Structure” for details.
●
APPLICATIONS
● Power supplies for LCDs and CCDs● Power sup...
