ABLIC S-8595B
The S-8594/8595 Series is a step-down switching regulator developed using high withstand voltage CMOS process technologies. This IC has high maximum operation voltage of 18 V and maintains high-accuracy FB pin voltage at ±1.0%.| Part No. | S-8595B |
|---|---|
| Datasheet | S-8595B Download |
| Manufacturer |  ABLIC |
| Description | 1A step-down switching regulator |
| Buy | Stock & Price |
FEATURES
● Input voltage:● Output voltage (externally set):
● Output current:
● FB pin voltage accuracy:
● Efficiency:
● Oscillation frequency:
● Overcurrent protection function:
● Thermal shutdown function:
● Short-circuit protection function:
● 100% duty cycle operation:
● Soft-start function:
● Under voltage lockout function (UVLO):
● Input and output capacitors:
● Operation temperature range:
● Lead-free (Sn 100%), halogen-free
●
APPLICATIONS
4.0 V to 18.0 V● Constant-voltage power supply for 1.0 V to 12.0 V industrial equipment 1A
● Constant-voltage power supply for home ±1.0% electric appliance 91% 2.2 MHz typ. 1.85 A typ. (pulse-by-pulse method) 170°C typ. (detection temperature) Hiccup control, Latch control 5.8 ms typ. 3.35 V typ. (detection voltage) Ceramic capacitor compatible Ta = −40°C to +105°C

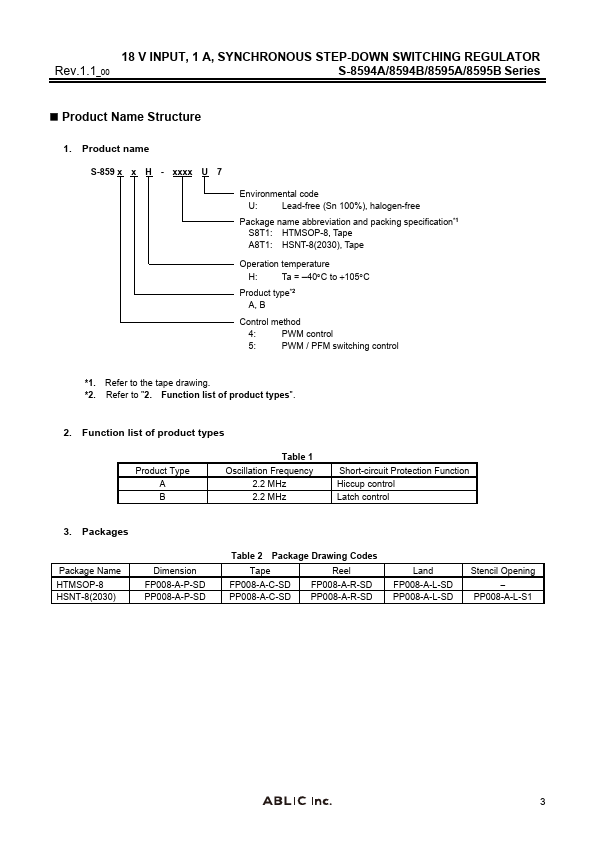

● Packages
● HTMSOP-8 (4.0 mm × 2.9 mm × t0.8 mm max.)
● HSNT-8(2030) (3.0 mm × 2.0 mm × t0.5 mm max.)

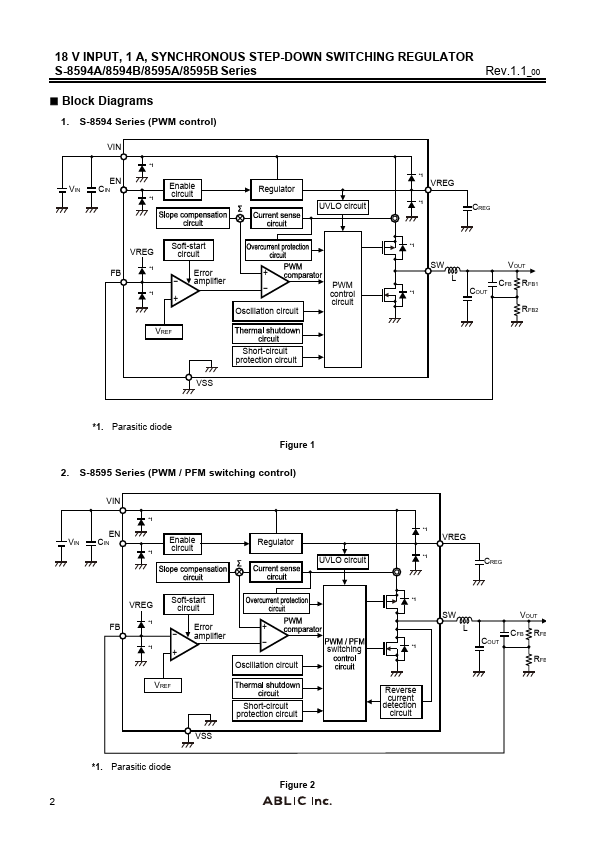

● Typical Application Circuit
● Efficiency VIN VIN L 2.2 µH VEN EN SW VOUT...
