ABOV SEMICONDUCTOR MC80F5232

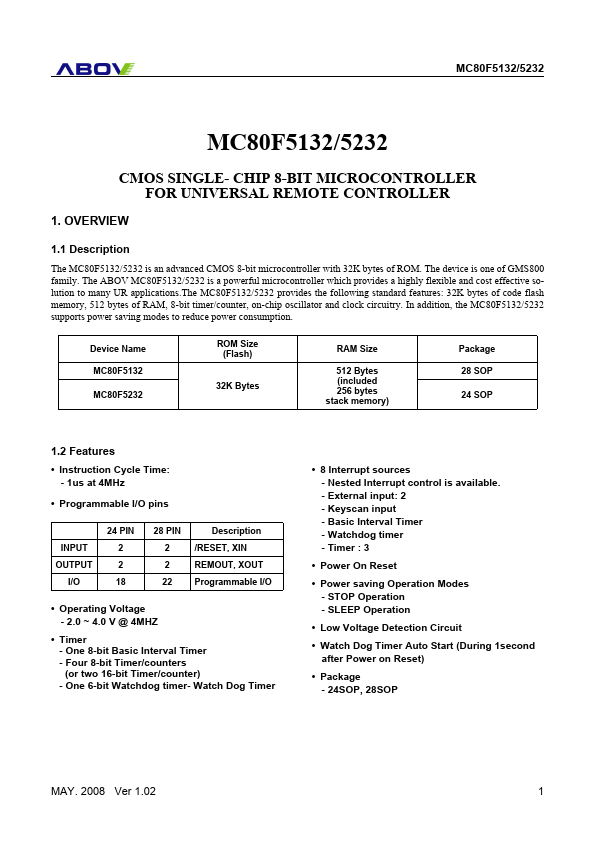

The MC80F5132/5232 is an advanced CMOS 8-bit microcontroller with 32K bytes of ROM. The device is one of GMS800 family. The ABOV MC80F5132/5232 is a powerful microcontroller which provides a highly flexible and cost effective solution to many UR applications.The MC80F5132/5232 provides the following standard features: 32K bytes of code flash memory, 512 bytes of RAM, 8-bit timer/counter, on-chip oscillator and clock circuitry.| Part No. | MC80F5232 |
|---|---|
| Datasheet | MC80F5232 Download |
| Manufacturer |  ABOV SEMICONDUCTOR |
| Description | 8-Bit Single-Chip Microcontroller |
| Buy | Stock & Price |
DESCRIPTION
The device is one of GMS800 family. In addition, the MC80F5132/5232 supports power saving modes to reduce power consumption. Device Name MC80F5132 MC80F5232 ROM Size (Flash) 32K Bytes RAM Size 512 Bytes (included 256 bytes stack memory) Package 28 SOP 24 SOP 1.2FEATURES
● Instruction Cycle Time: - 1us at 4MHz● Programmable I/O pins INPUT OUTPUT I/O 24 PIN 2 2 18 28 PIN 2 2 22
DESCRIPTION
/RESET, XIN REMOUT, XOUT Programmable I/O● Operating Voltage - 2.0 ~ 4.0 V @ 4MHZ
● Timer - One 8-bit Basic Interval Timer - Four 8-bit Timer/counters (or two 16-bit Timer/counter) - One 6-bit Watchdog timer- Watch Dog Timer
● 8 Interrupt sources - Nested Interrupt control is available. - External input: 2 - Keyscan input - Basic Interval Timer - Watchdog timer - Timer : 3
● Power On Reset
● Power saving Operation Modes - STOP Operation - SLEEP Operation
● Low Voltage Detection Circuit
● Watch Dog Timer Auto Start (During 1second after Power on Reset)
● Package - 24SOP, 28SOP MAY. 2008 V...
