ABOV SEMICONDUCTOR MC81F6104
MC81F6204 is a general purpose microcontroller based on G800 Core which contains 4K internal flash memory, 192byte SRAM, 3-channel Timer, 8bit ADC, Watch Dog Timer, Buzzer, PWM, Auto Triggering PWM with Analog Comparators, On-chip OP-Amp.
| Part No. |
MC81F6104 |
| Datasheet |
MC81F6104
Download
|
| Manufacturer |
 ABOV SEMICONDUCTOR |
| Description |
8-BIT SINGLE-CHIP MICROCONTROLLERS |
| Buy |
Stock & Price
|

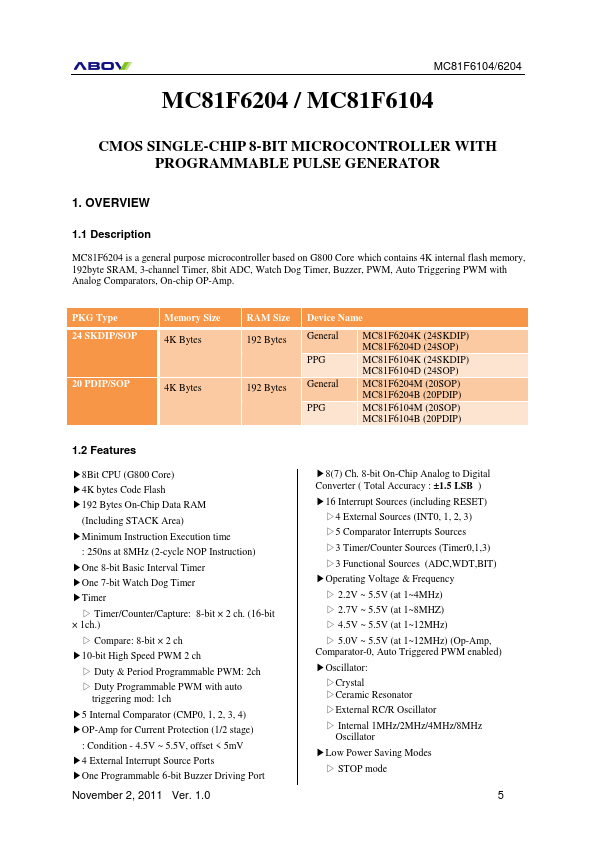

DESCRIPTION
PKG Type 24 SKDIP/SOP 20 PDIP/SOP Memory Size 4K Bytes 4K Bytes RAM Size 192 Bytes 192 Bytes Device Name General PPG General PPG MC81F6204K (24SKDIP) MC81F6204D (24SOP) MC81F6104K (24SKDIP) MC81F6104D (24SOP) MC81F6204M (20SOP) MC81F6204B (20PDIP) MC81F6104M (20SOP) MC81F6104B (20PDIP) 1.2 FEATURES
▶8Bit CPU (G800 Core) ▶4K bytes Code Flash ▶192 Bytes On-Chip Data RAM (Including STACK Area) ▶Minimum Instruction Execution time : 250ns at 8MHz (2-cycle NOP Instruction) ▶One 8-bit Basic Interval Timer ▶One 7-bit Watch Dog Timer ▶Timer ▷ Timer/Counter/Capture: 8-bit × 2 ch. (16-bit × 1ch.) ▷ Compare: 8-bit × 2 ch ▶10-bit High Speed PWM 2 ch ▷ Duty & Period Programmable PWM: 2ch ▷ Duty Programmable PWM with auto triggering mod: 1ch ▶5 Internal Comparator (CMP0, 1, 2, 3, 4) ▶OP-Amp for Current Protection (1/2 stage) : Condition - 4.5V ~ 5.5V, offset < 5mV ▶4 External Interrupt Source Ports ▶One Programmable 6-bit Buzzer Driving Port November 2, 2011 Ver. 1.0 ▶8(7) Ch. 8-bit On-Ch...
