ABOV MC2204
The MC2204 is specifically designed for LED and LED DISPLAY driver. The MC2204 has max 13 segment output lines, max 7 grid output lines, one display memory, control circuit, 4 line serial data interface, and max 10 x 2 matrix key scan . The more detail spec is listed below as Table 1.1.| Part No. | MC2204 |
|---|---|
| Datasheet | MC2204 Download |
| Manufacturer |  ABOV |
| Description | 10 SEGMENT x 7 GRID LED DRIVER |
| Buy | Stock & Price |

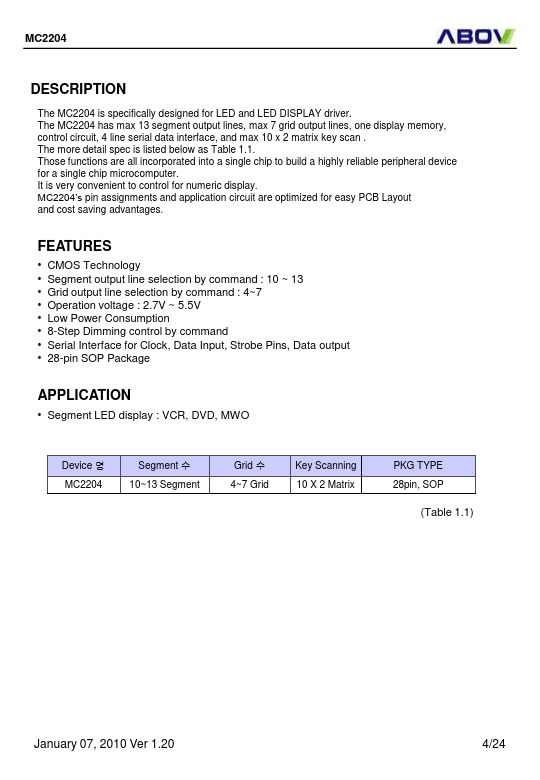

DESCRIPTION
Those functions are all incorporated into a single chip to build a highly reliable peripheral device for a single chip microcomputer. It is very convenient to control for numeric display. MC2204’s pin assignments and application circuit are optimized for easy PCB Layout and cost saving advantages.FEATURES
● CMOS Technology● Segment output line selection by command : 10 ~ 13
● Grid output line selection by command : 4~7
● Operation voltage : 2.7V ~ 5.5V
● Low Power Consumption
● 8-Step Dimming control by command
● Serial Interface for Clock, Data Input, Strobe Pins, Data output
● 28-pin SOP Package APPLICATION
● Segment LED display : VCR, DVD, MWO Device 명 MC2204 Segment 수 10~13 Segment Grid 수 4~7 Grid Key Scanning 10 X 2 Matrix PKG TYPE 28pin, SOP (Table 1.1) January 07, 2010 Ver 1.20 4/24 MC2204 PIN

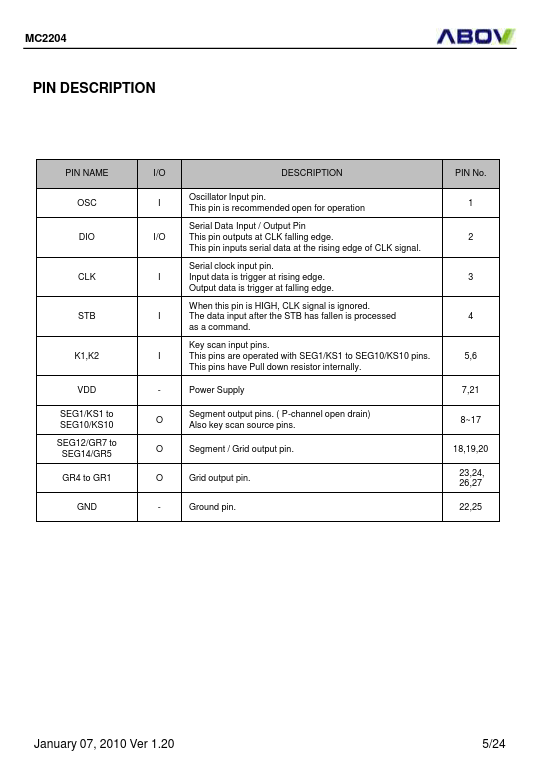

DESCRIPTION
PIN NAME OSC DIO CLK STB K1,K2 VDD SEG1/KS1 to SEG10/KS10 SEG12/GR7 to SEG14/GR5 GR4 to GR1 GND I/ODESCRIPTION
PIN No. I Oscillator Input pin. This pin is recommended open for operation 1 Serial Data Input / Output Pin I/O This pin outputs at CLK falling edge.
