MC96C7816 - 8-BIT MICROCONTROLLERS

Download the MC96C7816 datasheet PDF. This datasheet also covers the MC96F7816 variant, as both devices belong to the same 8-bit microcontrollers family and are provided as variant models within a single manufacturer datasheet.

General Description

’.

Add a note at ‘T3ADRL Register description ’.

Change ‘LCDCCR Register description ’.

Key Features

  • 13 1.4 Ordering Information 14 1.5 Development Tools 15 2. Block Diagram 17 3. Pin Assignment 18 4. Package Diagram 20 5. Pin.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (MC96F7816-ABOV.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number MC96C7816
Manufacturer ABOV
File Size 2.16 MB
Description 8-BIT MICROCONTROLLERS
Datasheet download datasheet MC96C7816 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MC961 (MC961 - MC963) INTEGRATED CIRCUITS Motorola
MC962 (MC961 - MC963) INTEGRATED CIRCUITS Motorola
MC963 (MC961 - MC963) INTEGRATED CIRCUITS Motorola
MC908 Indoor and outdoor temperature gauge MOSCASE
MC9080-A102x SMD Common mode choke coils ueno

Other Datasheets by ABOV

Part Number Description
MC96F1206 CMOS single-chip 8-bit MCU
MC96F4548 8-BIT MICROCONTROLLERS
MC96F6232 8-BIT MICROCONTROLLERS
MC96F6332 8-BIT MICROCONTROLLERS
MC96F6408A CMOS single-chip 8-bit MCU

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

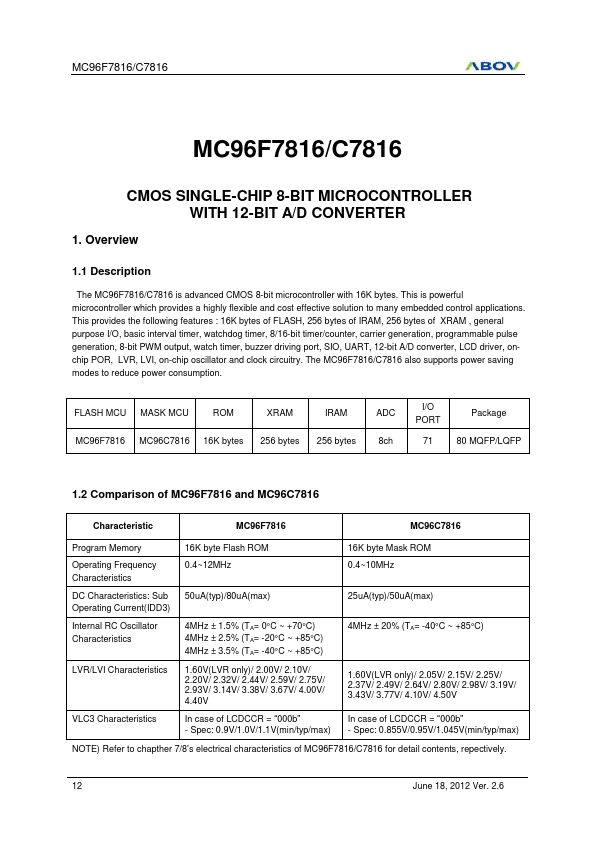

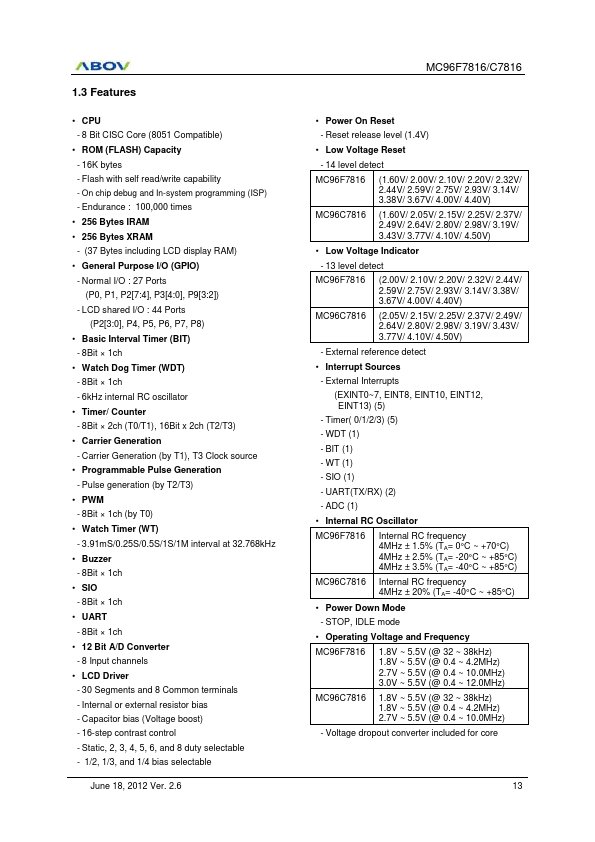

MC96F7816/C7816 ABOV SEMICONDUCTOR Co., Ltd. 8-BIT MICROCONTROLLERS MC96F7816/C7816 User’s Manual (Ver. 2.6) June 18, 2012 Ver. 2.6 1 MC96F7816/C7816 REVISION HISTORY VERSION 0.0 (April 9, 2010) VERSION 1.0 (July 12, 2010) Change all LVR/LVI’s Detection Min/Max Values at Low Voltage Reset and Low Voltage Indicator characteristics Change ‘8/14μA (Typ/Max)’ to “IBL @Both Enable” in Low Voltage Reset and Low Voltage Indicator characteristics Change ‘6/12μA (Typ/Max)’ to “IBL @One of two Enable” in Low Voltage Reset and Low Voltage Indicator characteristics Change ‘±1.5%/±2.5%/±3.5%’(TA= 0°C – +70°C/TA= -20°C – +85°C/TA= -40°C – +85°C@2.0V – 5.5V) to “IRC’s Tolerance” in Internal RC Oscillator characteristics.
