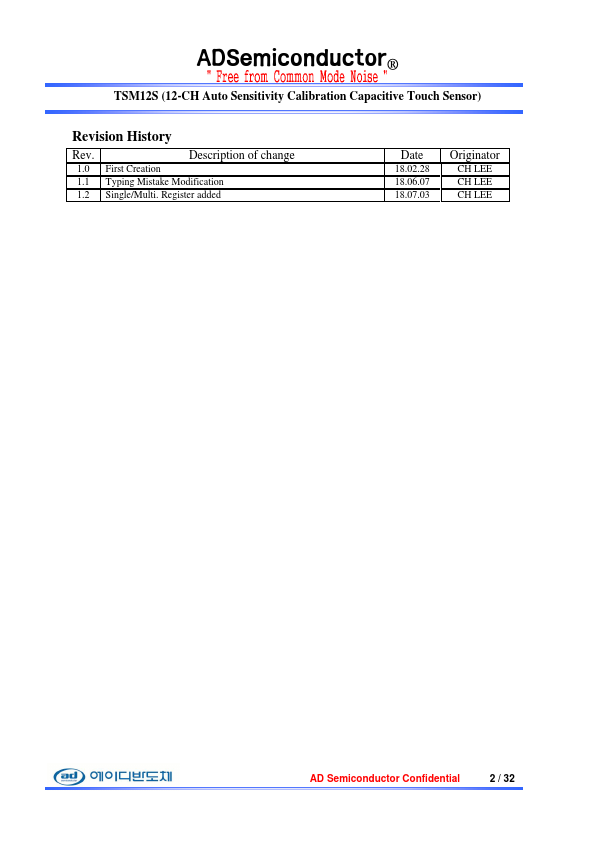

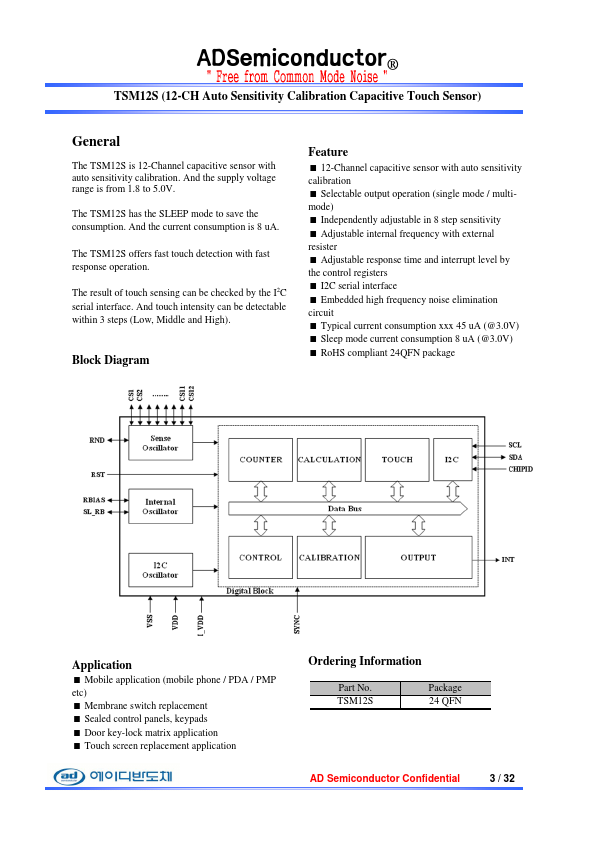

Description of change First Creation Typing Mistake Modification Single/Multi. Register added Date 18.02.28 18.06.07 18.07.03 Originator CH LEE CH LEE CH LEE AD Semiconductor Confidential 2 / 32 ADSemiconductor® TSM12S (12-CH Auto Sensitivity Calibration Capacitive Touch Sensor) General The TSM12S is 12-Channel capacitive sensor with auto sensitivity calibration. And the supply voltage range is from 1.8 to 5.0V. The TSM12S has the SLEEP mode to save the consumption. And the current consumption is 8 u A. The TSM12S offers fast touch detection with fast response operation. The result of touch sensing can be checked by the I2C serial interface. And touch intensity can be detectable within 3 steps (Low, Middle and High). Block Diagram Feature  12-Channel capacitive sensor with auto sensitivity calibration  Selectable output operation (single mode / multimode)  Independently adjustable in 8 step sensitivity  Adjustable internal frequency with external resister  Adjustable response time and interrupt level by the control registers  I2C serial interface  Embedded high frequency noise elimination circuit  Typical current consumption xxx 45 u A (@3.0V)  Sleep mode current consumption 8 u A (@3.0V)  Ro HS pliant 24QFN package Application  Mobile application (mobile phone / PDA / PMP etc)  Membrane switch replacement  Sealed control panels, keypads  Door key-lock matrix application  Touch screen replacement application Ordering Information Part No. TSM12S Package 24 QFN AD Semiconductor Confidential 3 / 32 ADSemiconductor® TSM12S (12-CH Auto Sensitivity Calibration Capacitive Touch Sensor) Content Revision History 2 General 3 1 Pin Configuration...
