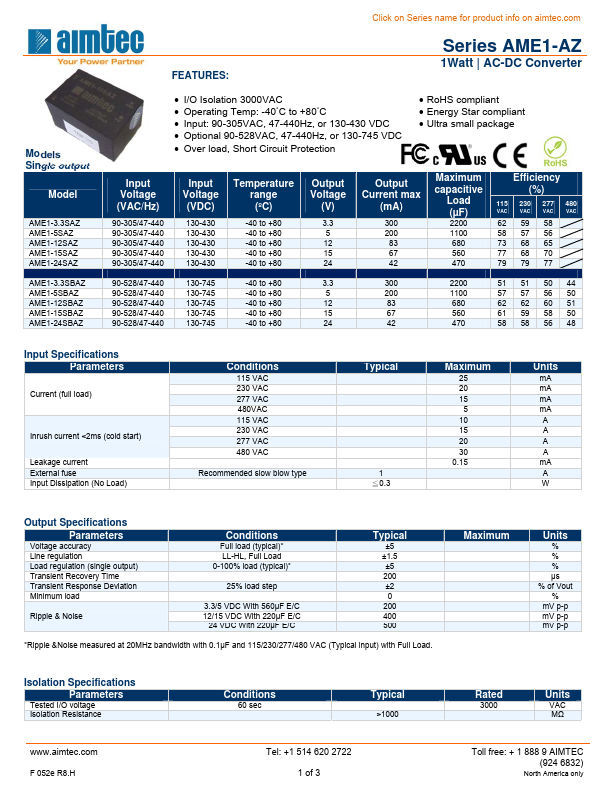

AME1-12SAZ Description
Models Single output Model AME1-3.3SAZ AME1-5SAZ AME1-12SAZ AME1-15SAZ AME1-24SAZ AME1-3.3SBAZ AME1-5SBAZ AME1-12SBAZ AME1-15SBAZ AME1-24SBAZ Click on Series name for product info on.
AME1-12SAZ Key Features
- I/O Isolation 3000VAC
- Operating Temp: -40°C to +80°C
- Input: 90-305VAC, 47-440Hz, or 130-430 VDC
- Optional 90-528VAC, 47-440Hz, or 130-745 VDC
- Over load, Short Circuit Protection
- RoHS pliant
- Energy Star pliant
- Ultra small package
- Ripple &Noise measured at 20MHz bandwidth with 0.1µF and 115/230/277/480 VAC (Typical input) with Full Load
- 40 to +80
