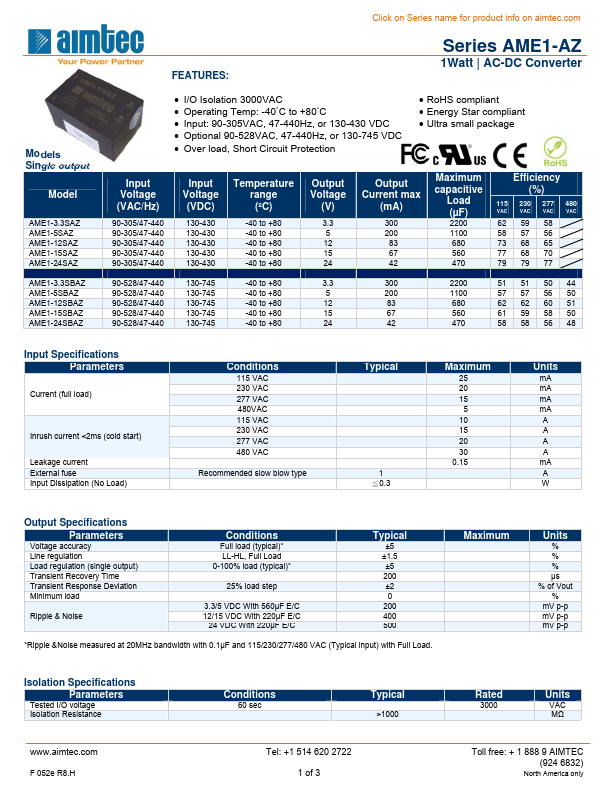

AME1-24SAZ
FEATURES
:
- I/O Isolation 3000VAC
- Operating Temp: -40°C to +80°C
- Input: 90-305VAC, 47-440Hz, or 130-430 VDC
- Optional 90-528VAC, 47-440Hz, or 130-745 VDC
- Over load, Short Circuit Protection
Series AME1-AZ
1Watt | AC-DC Converter
- Ro HS pliant
- Energy Star pliant
- Ultra small package
Input Voltage (VAC/Hz)
90-305/47-440 90-305/47-440 90-305/47-440 90-305/47-440 90-305/47-440
90-528/47-440 90-528/47-440 90-528/47-440 90-528/47-440 90-528/47-440
Input Voltage (VDC)
130-430 130-430 130-430 130-430 130-430
130-745 130-745 130-745 130-745 130-745
Temperature range (ºC)
-40 to +80 -40 to +80 -40 to +80 -40 to +80 -40 to +80
-40 to +80 -40 to +80 -40 to +80 -40 to +80 -40 to +80
Output Voltage
(V)
3.3 5 12 15 24
3.3 5 12 15 24
Output Current max
(m A)
300 200
83 67 42
Maximum capacitive
Load
(µF)
2200 1100 680 560 470
Efficiency (%)
115 230 277 480
VAC VAC VAC VAC
62 59 58 58 57 56 73 68 65 77 68 70 79 79 77
51 51 50...
