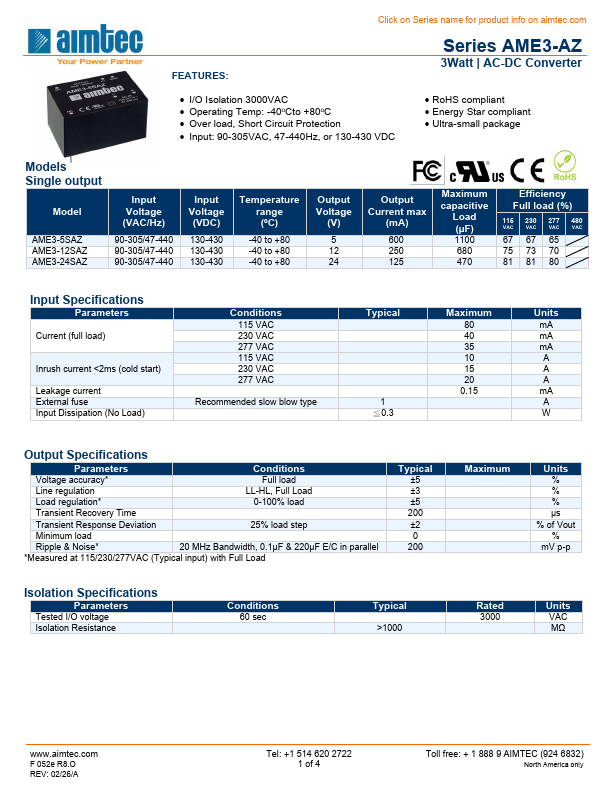

Datasheet Summary
Click on Series name for product info on aimtec.
Features
:
Series AME3-AZ
3Watt | AC-DC Converter
- I/O Isolation 3000VAC
- Operating Temp: -40oCto +80oC
- Over load, Short Circuit Protection
- Input: 90-305VAC, 47-440Hz, or 130-430 VDC
- RoHS pliant
- Energy Star pliant
- Ultra-small package
Models Single output
Model
Input Voltage (VAC/Hz)
AME3-5SAZ AME3-12SAZ AME3-24SAZ
90-305/47-440 90-305/47-440 90-305/47-440
Input Voltage (VDC)
130-430 130-430 130-430
Temperature range (ºC)
-40 to +80 -40 to +80 -40 to +80
Output Voltage
(V)
5 12 24
Output Current max
(mA)
600 250 125
Maximum capacitive
Load (µF) 1100 680 470
Efficiency Full load...
