AME40-MAZ - AC-DC / DC-DC Converter

Datasheet Summary

Features

  • 4000VAC I/O isolation.
  • Medical Switching power modules for PCB mounting.
  • Operating temperature: -40 to +85°C.
  • Universal Input: 90-264VAC, 47-440Hz, or 130-370VDC.
  • Energy star compliant.
  • RoHS compliant.
  • Low Ripple and Noise.
  • CE, cULus approvals CB Input Voltage (VAC/Hz) 90-264/47-440 90-264/47-440 90-264/47-440 90-264/47-440 90-264/47-440 Input Voltage (VDC) 130-370 130-370 130-370 130-370 130-370 Output Voltage (V) 3.3 5 12 15 24 Maximum Capacitive.

📥 Download Datasheet

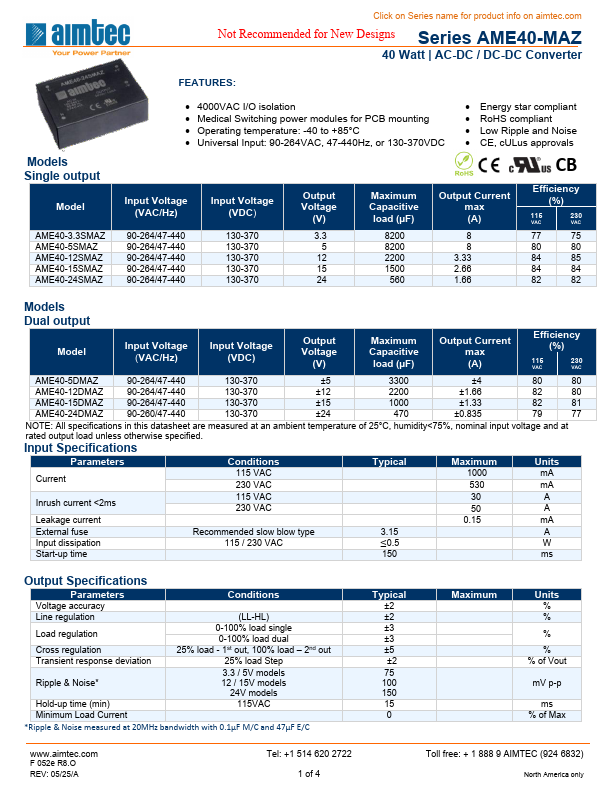

Datasheet preview – AME40-MAZ

Datasheet Details

Part number AME40-MAZ
Manufacturer AIMTEC
File Size 730.14 KB
Description AC-DC / DC-DC Converter
Datasheet download datasheet AME40-MAZ Datasheet
Additional preview pages of the AME40-MAZ datasheet.

📁 Similar Datasheet

  • AME40 - Micropower Voltage Reference Diode (Analog Microelectronics)
  • AME41-1.25 - Micropower Voltage Reference Diode (Analog Microelectronics)
  • AME41-4096 - Micropower Voltage Reference Diode (Analog Microelectronics)
  • AME41-ADJ - Micropower Voltage Reference Diode (Analog Microelectronics)
  • AME4311 - Low Voltage Shunt Regulator (Analog Microelectronics)
  • AME431B - Adjustable Precision Shunt Regulator (Analog Microelectronics)
  • AME1084 - 5A Low Dropout Positive Voltage Regulator (Analog Microelectronics)
  • AME1085 - 3A Low Dropout Positive Voltage Regulator (Analog Microelectronics)
  • AME1086 - 1.5A Low Dropout Positive Voltage Regulator (Analog Microelectronics)
  • AME1117 - 1A Low Dropout Positive Voltage Regulator (Analog Microelectronics)
Other Datasheets by AIMTEC
  • AME05 - 5 watt encapsulated ac-dc converter
  • AME1-AZ - AC-DC Converter
  • AME10 - 10 watt encapsulated ac-dc converter
  • AME125 - 125 Watt (Enclosed) AC/DC Converter
  • AME15 - 15 watt encapsulated ac-dc converter
  • AME15-MAZ - AC-DC Converter
  • AME2-AZ - AC-DC Converter
  • AME250-Z - 250 watt ac-dc converter

Full PDF Text Transcription

Click to expand full text
Click on Series name for product info on aimtec.com Series AME40-MAZ 40 Watt | AC-DC / DC-DC Converter Models Single output Model AME40-3.3SMAZ AME40-5SMAZ AME40-12SMAZ AME40-15SMAZ AME40-24SMAZ FEATURES:  4000VAC I/O isolation  Medical Switching power modules for PCB mounting  Operating temperature: -40 to +85°C  Universal Input: 90-264VAC, 47-440Hz, or 130-370VDC  Energy star compliant  RoHS compliant  Low Ripple and Noise  CE, cULus approvals CB Input Voltage (VAC/Hz) 90-264/47-440 90-264/47-440 90-264/47-440 90-264/47-440 90-264/47-440 Input Voltage (VDC) 130-370 130-370 130-370 130-370 130-370 Output Voltage (V) 3.3 5 12 15 24 Maximum Capacitive load (µF) 8200 8200 2200 1500 560 Output Current max (A) 8 8 3.33 2.66 1.
