Datasheet Summary
AC-DC Converter
Click to
ORDER samples
DIN Rail

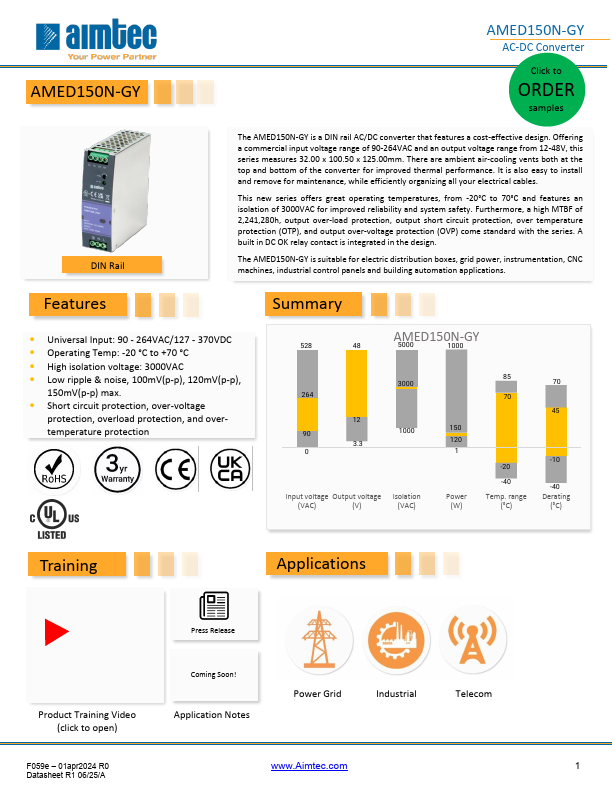

The AMED150N-GY is a DIN rail AC/DC converter that Features a cost-effective design. Offering a mercial input voltage range of 90-264VAC and an output voltage range from 12-48V, this series measures 32.00 x 100.50 x 125.00mm. There are ambient air-cooling vents both at the top and bottom of the converter for improved thermal performance. It is also easy to install and remove for maintenance, while efficiently organizing all your electrical cables.
This new series offers great operating temperatures, from -20°C to 70°C and Features an isolation of 3000VAC for improved reliability and system safety. Furthermore, a...
