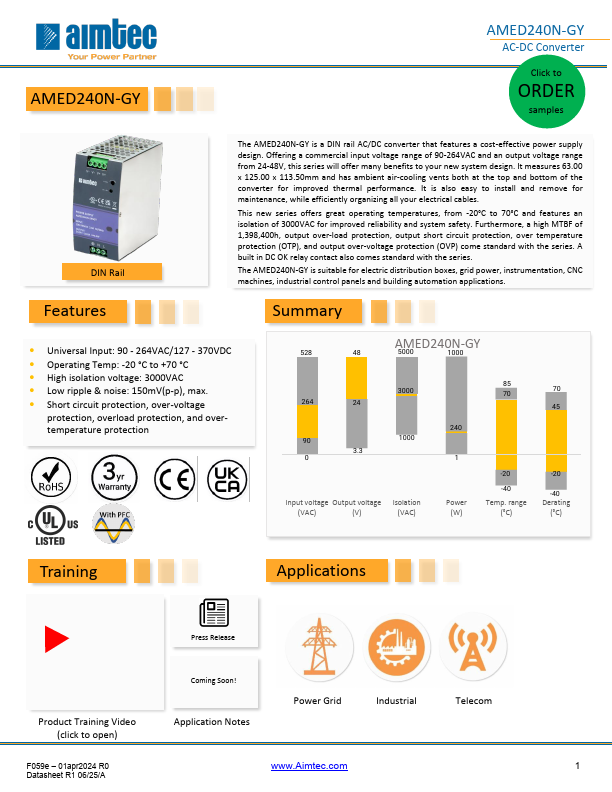

Datasheet Summary
AC-DC Converter
Click to
ORDER samples
DIN Rail
Features
The AMED240N-GY is a DIN rail AC/DC converter that Features a cost-effective power supply design. Offering a mercial input voltage range of 90-264VAC and an output voltage range from 24-48V, this series will offer many benefits to your new system design. It measures 63.00 x 125.00 x 113.50mm and has ambient air-cooling vents both at the top and bottom of the converter for improved thermal performance. It is also easy to install and remove for maintenance, while efficiently organizing all your electrical cables.
This new series offers great operating temperatures, from -20°C to 70°C and Features an...
