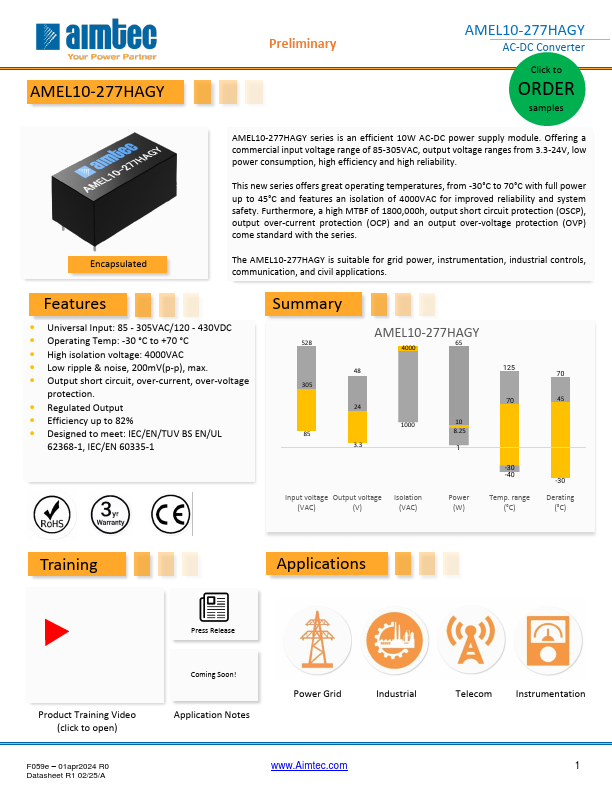

AMEL10-277HAGY
Overview
- Universal Input: 85 - 305VAC/120 - 430VDC
- Operating Temp: -30 °C to +70 °C
- High isolation voltage: 4000VAC
- Low ripple & noise, 200mV(p-p), max.
- Output short circuit, over-current, over-voltage protection.
- Regulated Output
- Efficiency up to 82%
- Designed to meet: IEC/EN/TUV BS EN/UL
