Datasheet Summary
AC-DC Converter
Click to
ORDER samples
Encapsulated

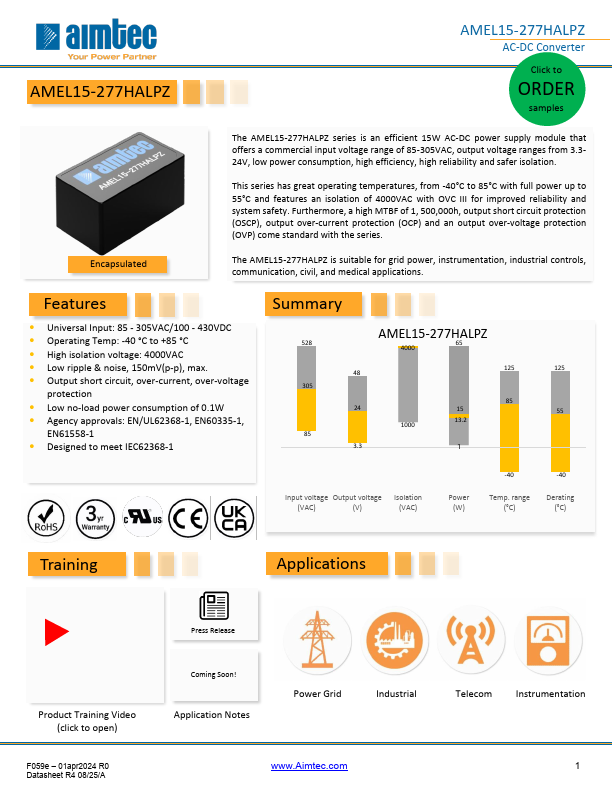

The AMEL15-277HALPZ series is an efficient 15W AC-DC power supply module that offers a mercial input voltage range of 85-305VAC, output voltage ranges from 3.324V, low power consumption, high efficiency, high reliability and safer isolation.
This series has great operating temperatures, from -40°C to 85°C with full power up to 55°C and Features an isolation of 4000VAC with OVC III for improved reliability and system safety. Furthermore, a high MTBF of 1, 500,000h, output short circuit protection (OSCP), output over-current protection (OCP) and an output over-voltage protection (OVP) e standard with...
