AMEL20-AZ - AC-DC / DC-DC Converter

Features

  • Click on Series name for product info on aimtec. com Series AMEL20-AZ 20 Watt | AC-DC / DC-DC Converter.
  • I/O Isolation 3000VAC.
  • Operating Temp: -40 oC to +80 oC.
  • Over load and, Over Voltage Protection.
  • Input: 90-305VAC, 47-440Hz, or 130-430VDC.
  • Energy Star compliant.
  • Ultra small package.
  • Up to 81% efficiency.
  • Short Circuit Protection Models Single output CB  Model Input Voltage (VAC/Hz) Input Voltage (VDC) Max Output wattage (W) Output Voltage(V).

📥 Download Datasheet

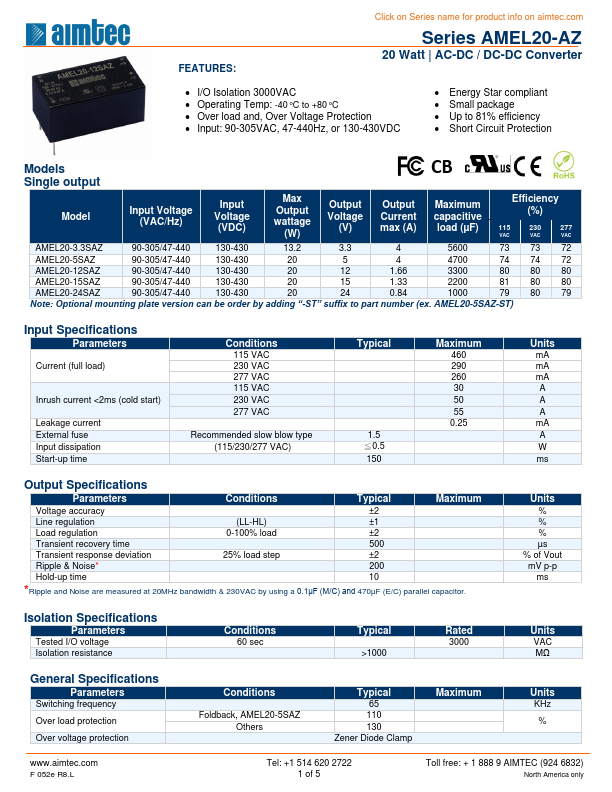

Datasheet preview – AMEL20-AZ

Datasheet Details

Part number AMEL20-AZ
Manufacturer AIMTEC
File Size 569.87 KB
Description AC-DC / DC-DC Converter
Datasheet download datasheet AMEL20-AZ Datasheet
Additional preview pages of the AMEL20-AZ datasheet.
