Datasheet Summary
Encapsulated
AC-DC Converter
Click to
ORDER samples

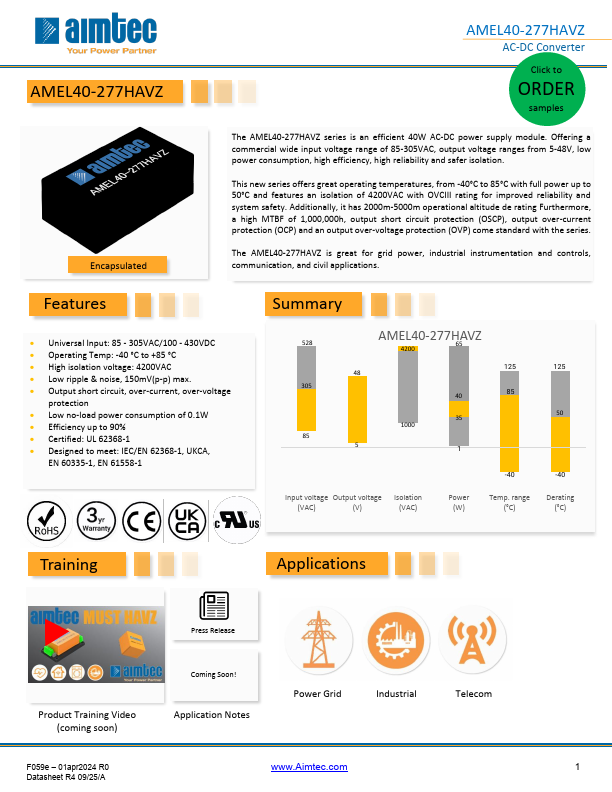

The AMEL40-277HAVZ series is an efficient 40W AC-DC power supply module. Offering a mercial wide input voltage range of 85-305VAC, output voltage ranges from 5-48V, low power consumption, high efficiency, high reliability and safer isolation.
This new series offers great operating temperatures, from -40°C to 85°C with full power up to 50°C and Features an isolation of 4200VAC with OVCIII rating for improved reliability and system safety. Additionally, it has 2000m-5000m operational altitude de rating Furthermore, a high MTBF of 1,000,000h, output short circuit protection (OSCP), output over-current...
