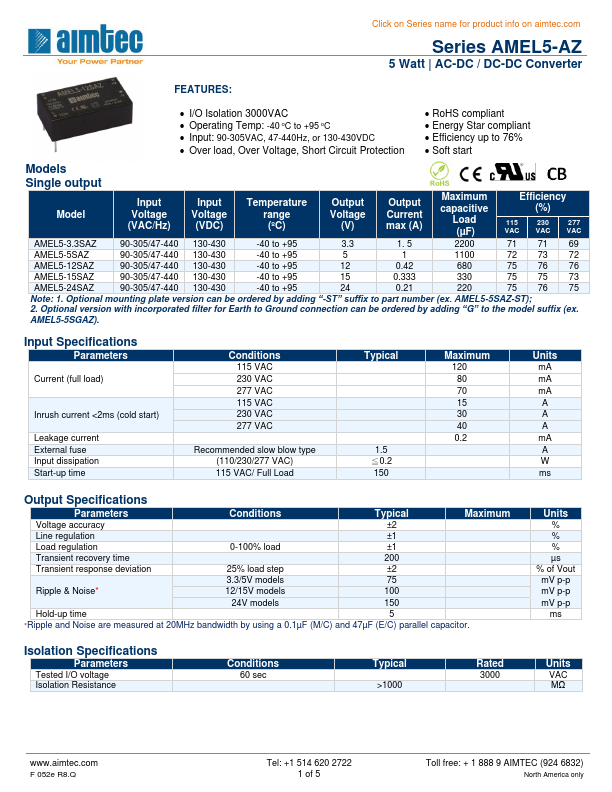

Datasheet Summary
Click on Series name for product info on aimtec.
Series AMEL5-AZ
5 Watt | AC-DC / DC-DC Converter
Features
:
- I/O Isolation 3000VAC
- Operating Temp: -40 oC to +95 oC
- Input: 90-305VAC, 47-440Hz, or 130-430VDC
- Over load, Over Voltage, Short Circuit Protection
- RoHS pliant
- Energy Star pliant
- Efficiency up to 76%
- Soft start
Models
Single output
Model
Input Voltage (VAC/Hz)
Input Voltage (VDC)
Temperature range (ºC)
Output Voltage
(V)
Output Current max (A)
Maximum capacitive
Load (µF)
Efficiency (%)
115 VAC
230 VAC
277 VAC
AMEL5-3.3SAZ
90-305/47-440...
