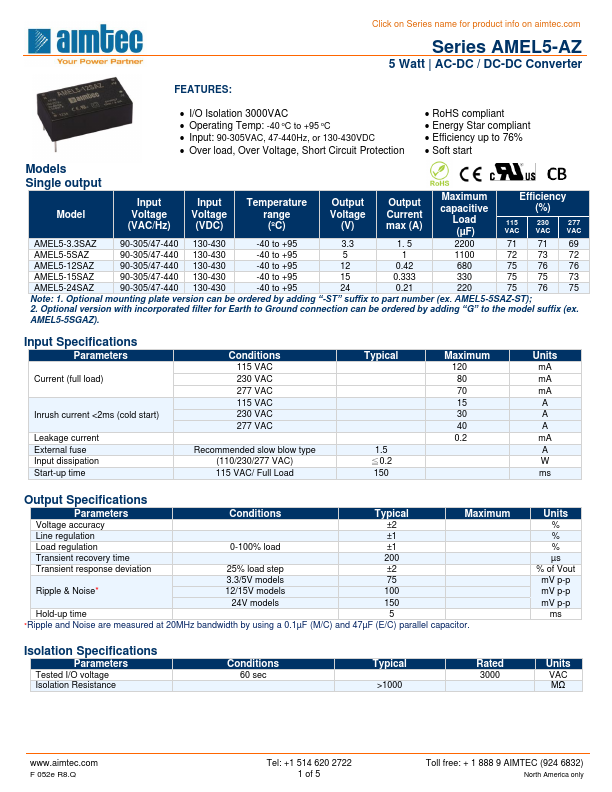

AMEL5-24SAZ
Overview
- I/O Isolation 3000VAC
- Operating Temp: -40 oC to +95 oC
- Input: 90-305VAC, 47-440Hz, or 130-430VDC
- Over load, Over Voltage, Short Circuit Protection
- RoHS compliant
- Energy Star compliant
- Efficiency up to 76%
- Soft start Models Single output Model Input Voltage (VAC/Hz) Input Voltage (VDC) Temperature range (ºC) Output Voltage (V) Output Current max (A) Maximum capacitive Load (µF) Efficiency (%) 115 VAC 230 VAC 277 VAC AMEL5-3.3SAZ
