Datasheet Summary
AMEL5-277HALPZ
AMEL5-277HALPZ
AC-DC Converter
Click to
ORDER samples
Encapsulated

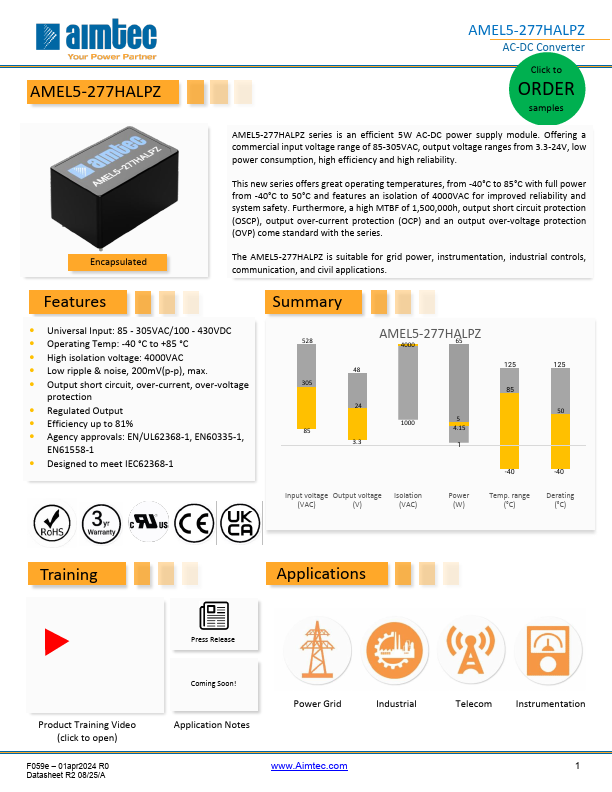

AMEL5-277HALPZ series is an efficient 5W AC-DC power supply module. Offering a mercial input voltage range of 85-305VAC, output voltage ranges from 3.3-24V, low power consumption, high efficiency and high reliability.
This new series offers great operating temperatures, from -40°C to 85°C with full power from -40°C to 50°C and Features an isolation of 4000VAC for improved reliability and system safety. Furthermore, a high MTBF of 1,500,000h, output short circuit protection (OSCP), output over-current protection (OCP) and an output over-voltage protection (OVP) e standard with the series.
The...
