Datasheet Summary
Encapsulated
Preliminary
AC-DC Converter
Click to
ORDER samples

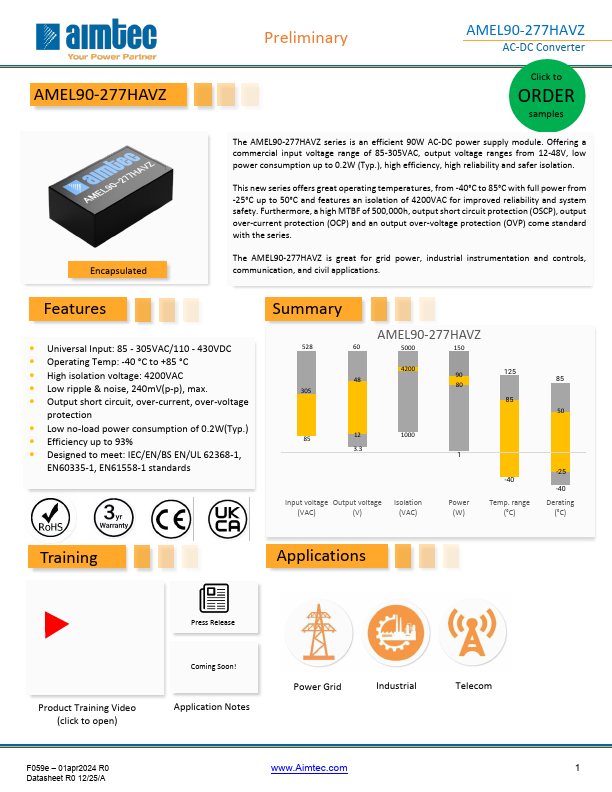

The AMEL90-277HAVZ series is an efficient 90W AC-DC power supply module. Offering a mercial input voltage range of 85-305VAC, output voltage ranges from 12-48V, low power consumption up to 0.2W (Typ.), high efficiency, high reliability and safer isolation.
This new series offers great operating temperatures, from -40°C to 85°C with full power from -25°C up to 50°C and Features an isolation of 4200VAC for improved reliability and system safety. Furthermore, a high MTBF of 500,000h, output short circuit protection (OSCP), output over-current protection (OCP) and an output over-voltage...
