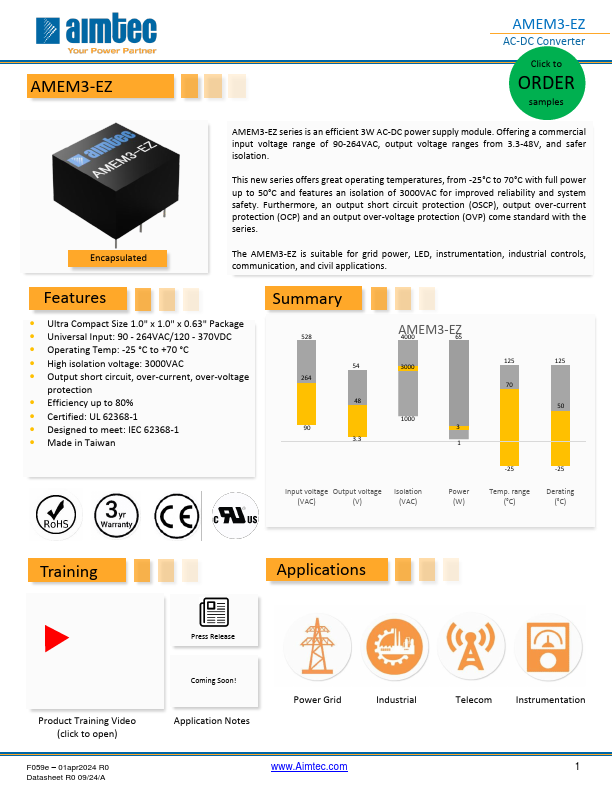

AMEM3-5SEZ
Overview
- Ultra Compact Size 1.0" x 1.0" x 0.63" Package
- Universal Input: 90 - 264VAC/120 - 370VDC
- Operating Temp: -25 °C to +70 °C
- High isolation voltage: 3000VAC
- Output short circuit, over-current, over-voltage protection
- Efficiency up to 80%
- Certified: UL 62368-1
- Designed to meet: IEC 62368-1
- Made in Taiwan Summary 528 AMEM3-EZ 4000 65 54 3000 264 48 1000 90 3
- 3 1 125 125 70 50 Input voltage Output voltage Isolation (VAC) (V) (VAC) Power (W) -25 -25 Temp. range (°C) Derating (°C) Training
