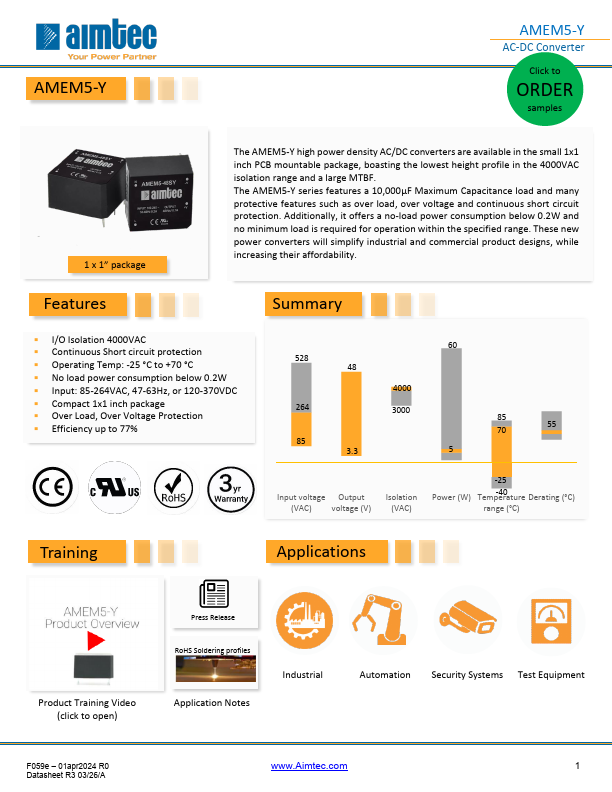

Datasheet Summary
AMEM5-Y
AMEM5-Y
AC-DC Converter
Click to
ORDER samples
1 x 1” package
The AMEM5-Y high power density AC/DC converters are available in the small 1x1 inch PCB mountable package, boasting the lowest height profile in the 4000VAC isolation range and a large MTBF. The AMEM5-Y series Features a 10,000μF Maximum Capacitance load and many protective Features such as over load, over voltage and continuous short circuit protection. Additionally, it offers a no-load power consumption below 0.2W and no minimum load is required for operation within the specified range. These new power converters will simplify industrial and mercial product designs, while increasing their affordability.
Features...
