AP6680ZF - One Cell Li-ion and Li-poly Battery Protection IC

Datasheet Summary

Description

The AP6680 is a high integration solution for lithium-ion/polymer battery protection.

AP6680 contains internal power MOSFET, high-accuracy voltage detection circuits and delay circuits.

Features

  • Protection of Charger Reverse Connection.
  • Protection ofBattery Cell Reverse Connection.
  • Over-temperature Protection.
  • Overcharge Current Protection.
  • Two-step Overcurrent Detection: Over Discharge Current Load Short Circuiting.
  • Charger Detection Function.
  • OVBattery Charging Function.
  • RoHS Compliant and Lead (Pb) Free.
  • 60mQ Low Rss(ONJ Internal Power MOSFET.
  • Delay Times are generated inside.
  • High-a.

📥 Download Datasheet

Datasheet preview – AP6680ZF

Datasheet Details

Part number AP6680ZF
Manufacturer ALLPOWER
File Size 1.61 MB
Description One Cell Li-ion and Li-poly Battery Protection IC
Datasheet download datasheet AP6680ZF Datasheet
Additional preview pages of the AP6680ZF datasheet.

📁 Similar Datasheet

  • AP6680AGM - N-Channel MOSFET (Advanced Power Electronics)
  • AP6680AGM-HF - N-CHANNEL ENHANCEMENT MODE POWER MOSFET (Advanced Power Electronics)
  • AP6680BGM-HF - N-CHANNEL ENHANCEMENT MODE POWER MOSFET (Advanced Power Electronics)
  • AP6680BGM-HF-3 - N-CHANNEL ENHANCEMENT MODE POWER MOSFET (Advanced Power Electronics)
  • AP6680BGMT - N-CHANNEL ENHANCEMENT MODE POWER MOSFET (Advanced Power Electronics)
  • AP6680BGYT-HF - N-CHANNEL ENHANCEMENT MODE POWER MOSFET (Advanced Power Electronics)
  • AP6680CGYT-HF - N-CHANNEL ENHANCEMENT MODE POWER MOSFET (Advanced Power Electronics)
  • AP6680GM - N-CHANNEL ENHANCEMENT MODE POWER MOSFET (Advanced Power Electronics)
  • AP6680SGYT-HF - N-CHANNEL ENHANCEMENT MODE POWER MOSFET (Advanced Power Electronics)
  • AP6681GMT-HF - P-Channel MOSFET (Advanced Power Electronics)
Other Datasheets by ALLPOWER

Full PDF Text Transcription

Click to expand full text

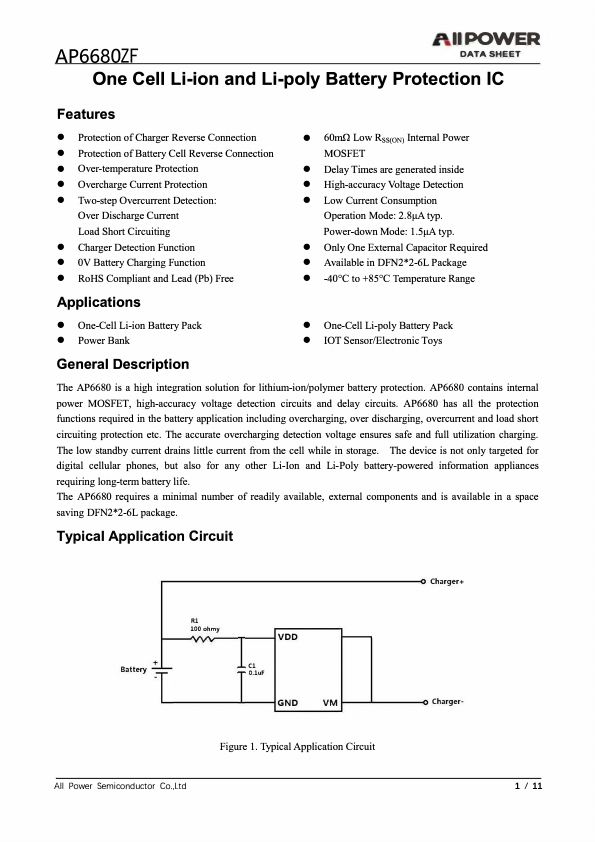

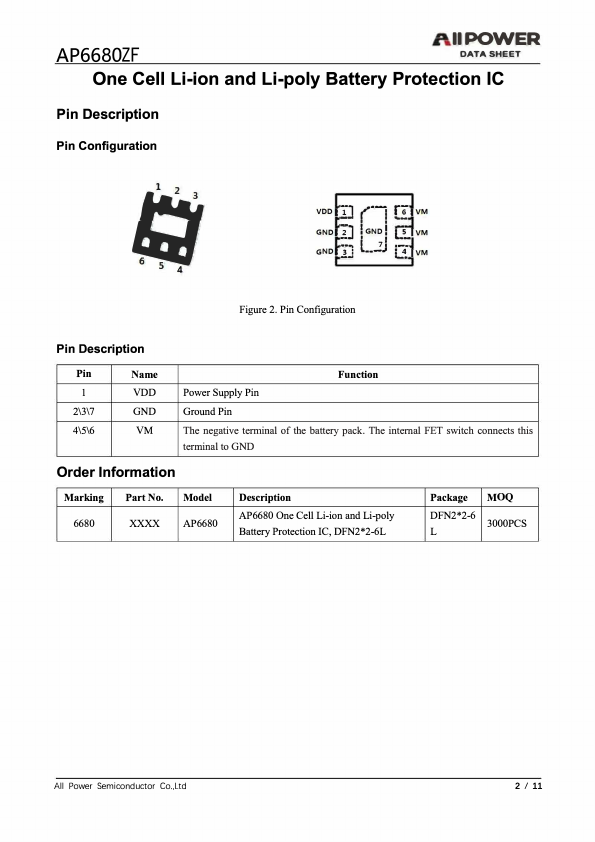

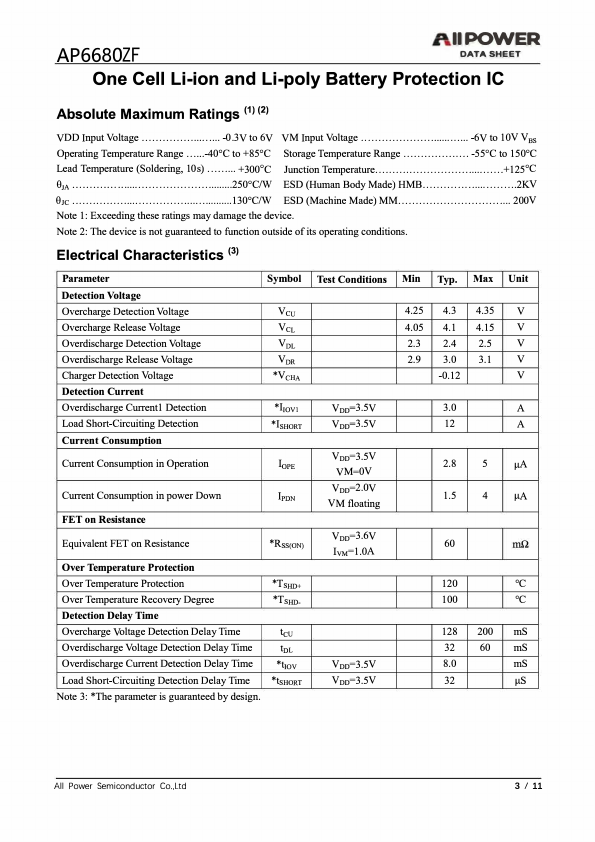

AP6680ZF IIPOWER DATA SHEET One Cell Li-ion and Li-poly Battery Protection IC Features • Protection of Charger Reverse Connection • Protection ofBattery Cell Reverse Connection • Over-temperature Protection • Overcharge Current Protection • Two-step Overcurrent Detection: Over Discharge Current Load Short Circuiting • Charger Detection Function • OVBattery Charging Function • RoHS Compliant and Lead (Pb) Free • 60mQ Low Rss(ONJ Internal Power MOSFET • Delay Times are generated inside • High-accuracy Voltage Detection • Low Current Consumption Operation Mode: 2.8µA typ. Power-down Mode: 1.5µA typ.
