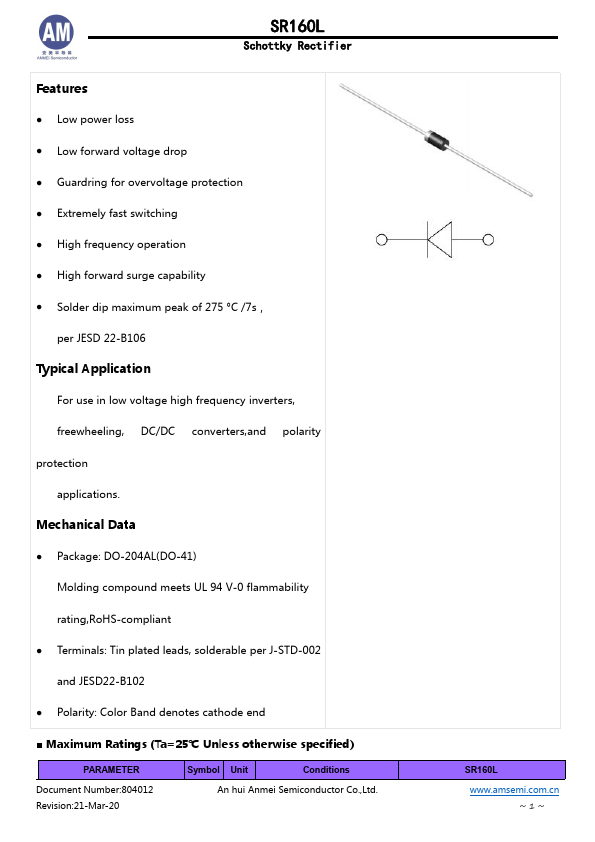

AM SR160L
Schottky Rectifier
| Part No. | SR160L |
|---|---|
| Datasheet | SR160L Download |
| Manufacturer | AM |
| Description | Schottky Rectifier |
| Buy | Stock & Price |
FEATURES
● Low power loss● Low forward voltage drop
● Guardring for overvoltage protection
● Extremely fast switching
● High frequency operation
● High forward surge capability
● Solder dip maximum peak of 275 °C /7s， per JESD 22-B106 Typical Application For use in low voltage high frequency inverters, freewheeling, DC/DC converters,and polarity protection applications.
MECHANICAL DATA
● Package: DO-204AL(DO-41) Molding compound meets UL 94 V-0 flammability rating,RoHS-compliant● Terminals: Tin plated leads, solderable per J-STD-002 and JESD22-B102
● Polarity: Color Band denotes cathode end
●
MAXIMUM RATINGS
(Ta=25℃ Unless otherwise specified) PARAMETER Document Number:804012 Revision:21-Mar-20 Symbol Unit Conditions An hui Anmei Semiconductor Co.,Ltd. SR160L ~1~ Repetitive Peak Reverse Voltage Average Rectified Output Current Surge(Nonrepetitive)Forward Current Storage Temperature Junction Temperature VRRM IF(AV) IFSM Tstg Tj SR160L Schottky Rectifier V A 60HZ Half-sine wave, Resist...
