MTC-30522 - VAN Interface

Datasheet Summary

Description

The chip is designed to be used in a car multiplexing system in bus collision mode, using the VAN protocol according to ISO standard 11519-3, at a maximum transmission speed of 160kHz.

Features

Line Interface Circuit for Automotive Multiplex Systems.
Fully Integrated Support for the VAN Protocol (layer 1 of the OSI model).
Integrates: - Interface protection - Line biasing - Transmitter - Receiver - Watchdog function - Power on reset.
Hardware Support for Bus Collision Detection.
Data Rates from 10k to 160kbits/second.
Multi-Master / Multi-Slave Configurations, as well as Master-Slave.
Integrated Protection against Automot.

AMI Semiconductor

📥 Download Datasheet

Datasheet Details

Part number	MTC-30522
Manufacturer	AMI Semiconductor
File Size	326.81 KB
Description	VAN Interface
Datasheet	MTC-30522 Datasheet
Additional preview pages of the MTC-30522 datasheet.

📁 Similar Datasheet

MTC-16101XRYHS - LCD MODULE (Microtips)
MTC-16201X - Display Module (ETC)
MTC-16204X - MODULE (ETC)
MTC-16206X - Display Module (ETC)
MTC-16400X - Display Module (ETC)
MTC-2010 - Microcontroller (Mietec Alcatel)
MTC-20172 - Telecommunication IC (Mietec Alcatel)
MTC-20400X - Display Module (ETC)
MTC-S16201XFGHSAY - LCD MODULE (MT)
MTC-S16204XRGHS - LCD (Microtips)

Other Datasheets by AMI Semiconductor

Full PDF Text Transcription

Click to expand full text

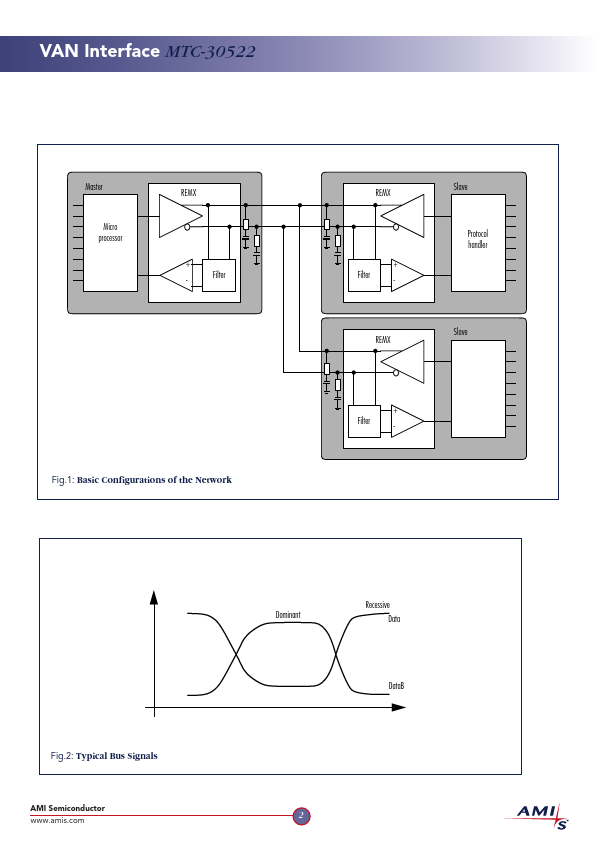

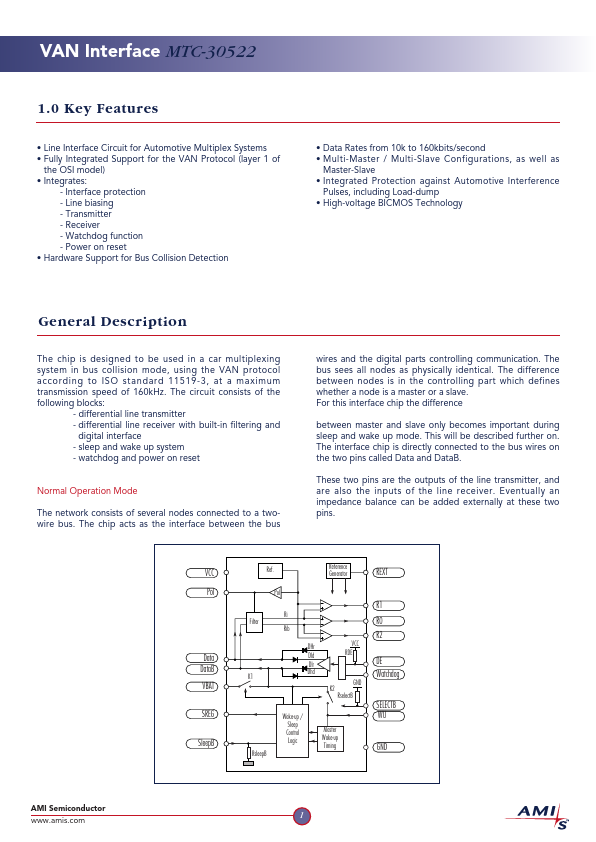

VAN Interface MTC-30522 1.0 Key Features • Line Interface Circuit for Automotive Multiplex Systems • Fully Integrated Support for the VAN Protocol (layer 1 of the OSI model) • Integrates: - Interface protection - Line biasing - Transmitter - Receiver - Watchdog function - Power on reset • Hardware Support for Bus Collision Detection • Data Rates from 10k to 160kbits/second • Multi-Master / Multi-Slave Configurations, as well as Master-Slave • Integrated Protection against Automotive Interference Pulses, including Load-dump • High-voltage BICMOS Technology General Description The chip is designed to be used in a car multiplexing system in bus collision mode, using the VAN protocol according to ISO standard 11519-3, at a maximum transmission speed of 160kHz.

Published: Nov 15, 2025 |
