A7103A - 315M/434MHz ASK/FSK Transceiver

General Description

Add top marking info., reflow profile, Carry tape & reel dimensions.

Add hardware control mode description Modify ordering information Add look-up-table of setting of TRx frequency.

Add look-up-table in HW control and SPI control mode.

Key Features

  • 3 4. Block Diagram 4 5. Pin Configuration 5 6. Absolute Maximum Ratings 5 7. Pin.

📥 Download Datasheet

Datasheet Details

Part number A7103A
Manufacturer AMICCOM
File Size 1.32 MB
Description 315M/434MHz ASK/FSK Transceiver
Datasheet download datasheet A7103A Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
A7106 600mA 1.5MHz CONSTANT FREQUENCY CURRENT MODE PWM STEP-DOWN DC-DC CONVERTER AiT Semiconductor
A71 Cascadable Amplifier Tyco Electronics
A71-H08X 2-Electrode-Arrester EPCOS
A71-H08XG 2-Electrode-Arrester EPCOS
A71-H10X 2-Electrode-Arrester EPCOS

Other Datasheets by AMICCOM

Part Number Description
A7103 UHF ASK/FSK Transceiver
A7103B 315/433/868/915MHz ASK/FSK Transceiver
A7102A 315/433MHz FSK Transceiver
A7105 2.4G FSK/GFSK Transceiver
A7106 2.4G FSK/GFSK Transceiver

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

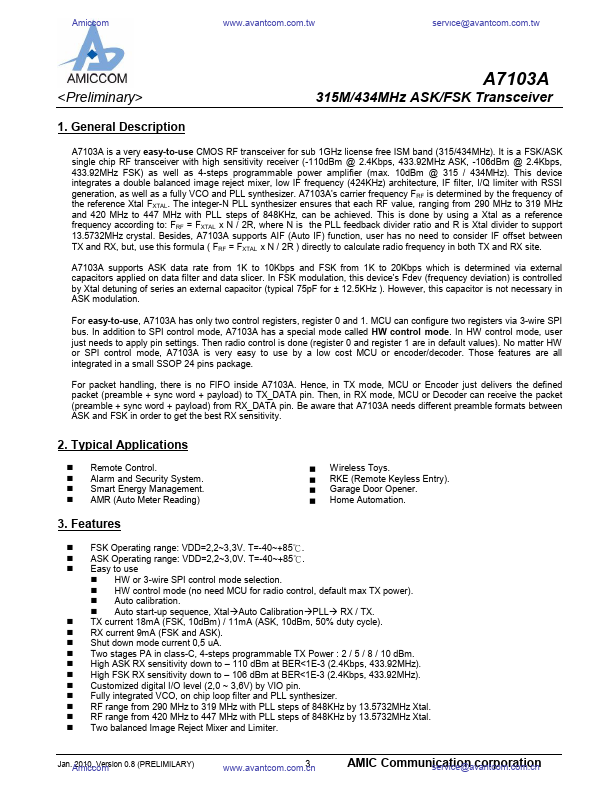

Amiccom www.avantcom.com.tw service@avantcom.com.tw A7103A 315M/434MHz ASK/FSK Transceiver Document Title A7103A Data Sheet, 315MHz / 434MHz ASK Transceiver with 1~10Kbps data rate , 315MHz / 434MHz FSK Transceiver with 1~20Kbps data rate Revision History Rev. No. 0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 History Initial Issue Modify specifications Modify Logo and title Modify register setting Modify register setting for TX power control and Xtal start up time description Add top marking info., reflow profile, Carry tape & reel dimensions. Add hardware control mode description Modify ordering information Add look-up-table of setting of TRx frequency. Add look-up-table in HW control and SPI control mode. Add look-up-table of frequency deviation in FSK modulation.
