AP6212 - WiFi+Bluetooth 4.0 + FM RX SIP-Module

Datasheet Summary

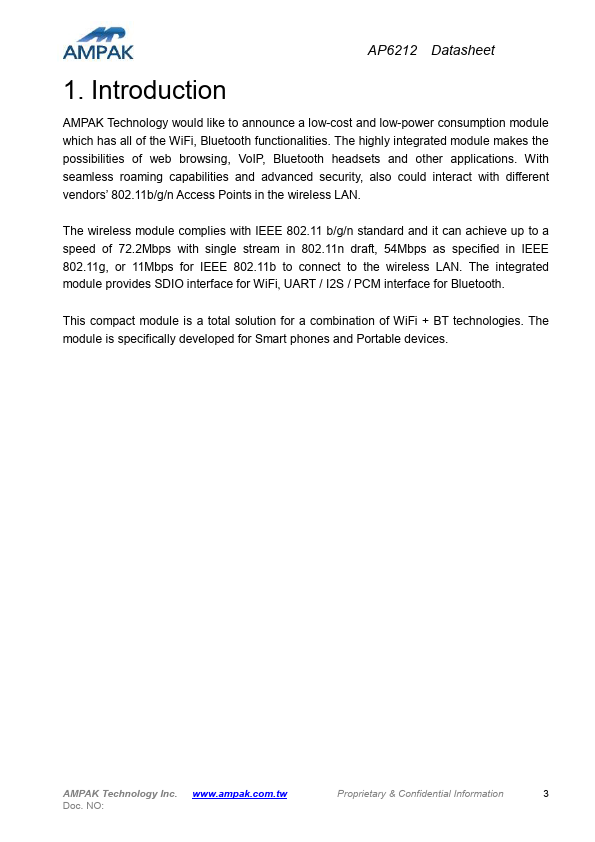

Description

15 11.

Host Interface Timing Diagram 16 11.1 Power-up Sequence Timing Diagram 16 11.2 SDIO Default Mode Timing Diagram 18 11.3 SDIO High Speed Mode Timing Diagram 19 12.

Recommended Reflow Profile 20 13.

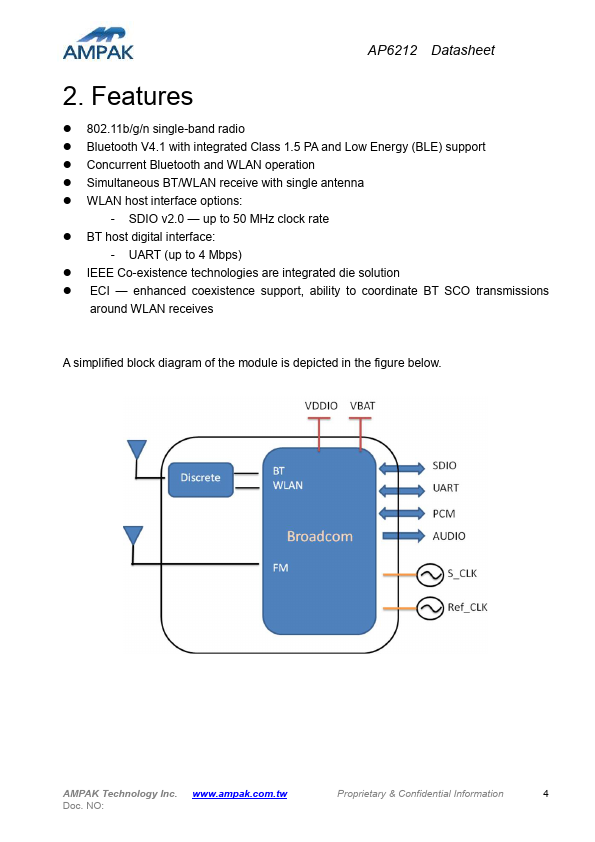

Features

  • 4 3. Deliverables 5 3.1 Deliverables 5 3.2 Regulatory certifications 5 4. General Specification 6 4.1 General Specification 6 4.2 Voltages 6 4.2.1 Absolute Maximum Ratings 6 4.2.2 Recommended Operating Rating 6 5. WiFi RF Specification 7 5.1 2.4GHz RF Specification 7 6. Bluetooth Specification 9 6.1 Bluetooth Specification 9 7. FM Specification 10 7.1 FM Specification 10 8. Pin Assignments 11 8.1 Pin Outline 11 8.2 Pin Definition 11 9. Dimensions 13 9.1 Physical Dimensions 13 9.2 La.

📥 Download Datasheet

Datasheet preview – AP6212

Datasheet Details

Part number AP6212
Manufacturer AMPAK
File Size 1.70 MB
Description WiFi+Bluetooth 4.0 + FM RX SIP-Module
Datasheet download datasheet AP6212 Datasheet
Additional preview pages of the AP6212 datasheet.

📁 Similar Datasheet

  • AP6213A - Low Noise LDO (Anwell Semiconductor)
  • AP62150 - 1.5A LOW IQ SYNCHRONOUS BUCK CONVERTER (DIODES)
  • AP6203A - 300mA Linear Regulator (Anwell Semiconductor)
  • AP6203B - 300mA Linear Regulator (Anwell Semiconductor)
  • AP6203L - 300mA Linear Regulator (Anwell Semiconductor)
  • AP6209 - 250mA Low- Quiescent Current Linear Regulator (Anwell Semiconductor)
  • AP622 - UMTS-band 4W HBT Amplifier Module (WJ Communication)
  • AP62200 - 2A LOW IQ SYNCHRONOUS BUCK CONVERTER (Diodes)
  • AP62200T - 2A LOW IQ SYNCHRONOUS BUCK CONVERTER (Diodes)
  • AP62201 - 2A LOW IQ SYNCHRONOUS BUCK CONVERTER (Diodes)
Other Datasheets by AMPAK
  • AP6210 - WiFi 802.11b/g/n + BT4.0 SIP
  • AP6210B - BlueTooth-4.0 BLE-Module
  • AP6234 - WiFi 11a/b/g/n +Bluetooth 4.0 SIP Module
  • AP6236 - WiFi + Bluetooth 4.2 SIP Module
  • AP6255 - WiFi 11ac + Bluetooth-4.1 Module
  • AP6256 - a fully Wi-Fi and Bluetooth functionalities module
  • AP6275S - a fully Wi-Fi and Bluetooth functionalities module
  • AP62X2 - 2x2 WiFi+Bluetooth 4.0(HS)+FM Rx Module

Full PDF Text Transcription

Click to expand full text

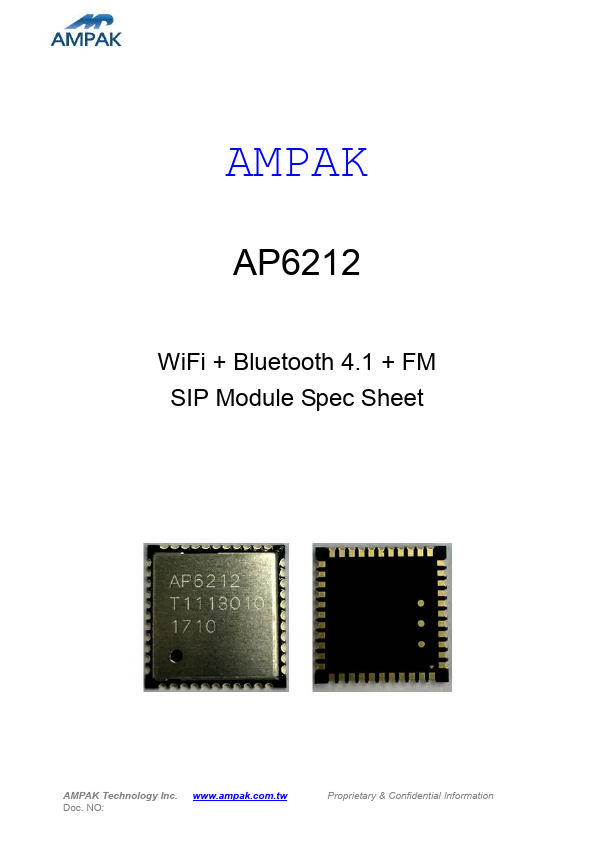

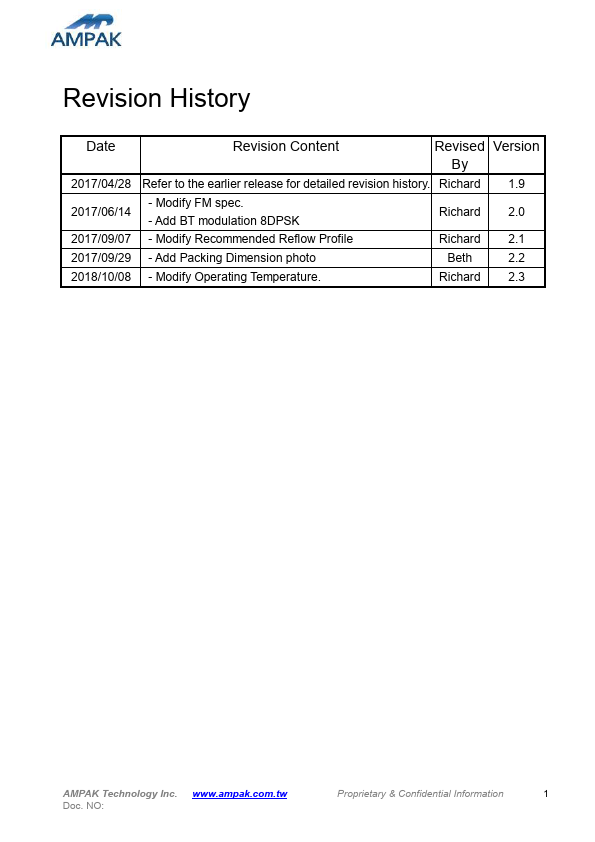

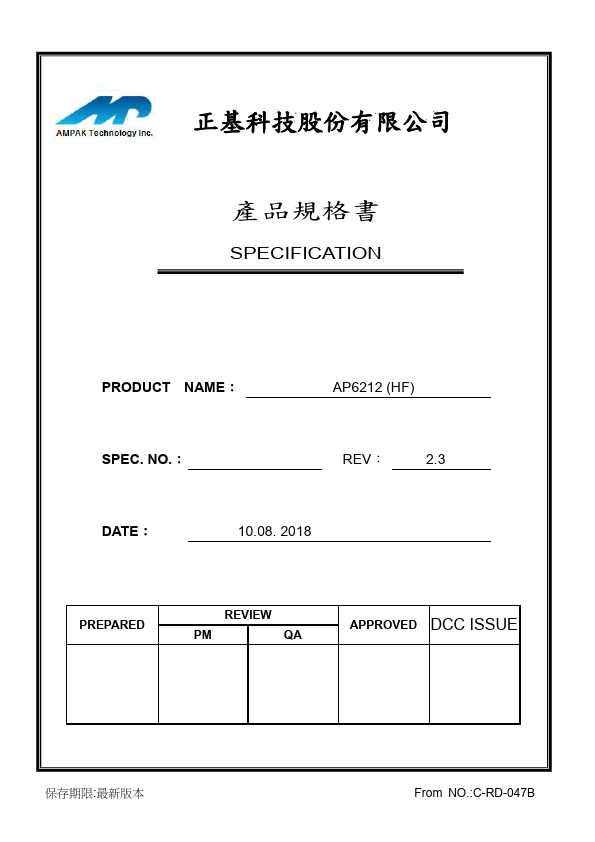

SPECIFICATION PRODUCT NAME： AP6212 (HF) SPEC. NO.： REV： 2.3 DATE： 10.08. 2018 PREPARED REVIEW PM QA APPROVED DCC ISSUE : From NO.:C-RD-047B AMPAK AP6212 WiFi + Bluetooth 4.1 + FM SIP Module Spec Sheet AMPAK Technology Inc. www.ampak.com.tw Doc. NO: Proprietary & Confidential Information Revision History Date Revision Content Revised Version By 2017/04/28 Refer to the earlier release for detailed revision history. Richard 1.9 - Modify FM spec. 2017/06/14 - Add BT modulation 8DPSK Richard 2.0 2017/09/07 - Modify Recommended Reflow Profile Richard 2.1 2017/09/29 - Add Packing Dimension photo Beth 2.2 2018/10/08 - Modify Operating Temperature. Richard 2.3 AMPAK Technology Inc. www.ampak.com.tw Doc.
