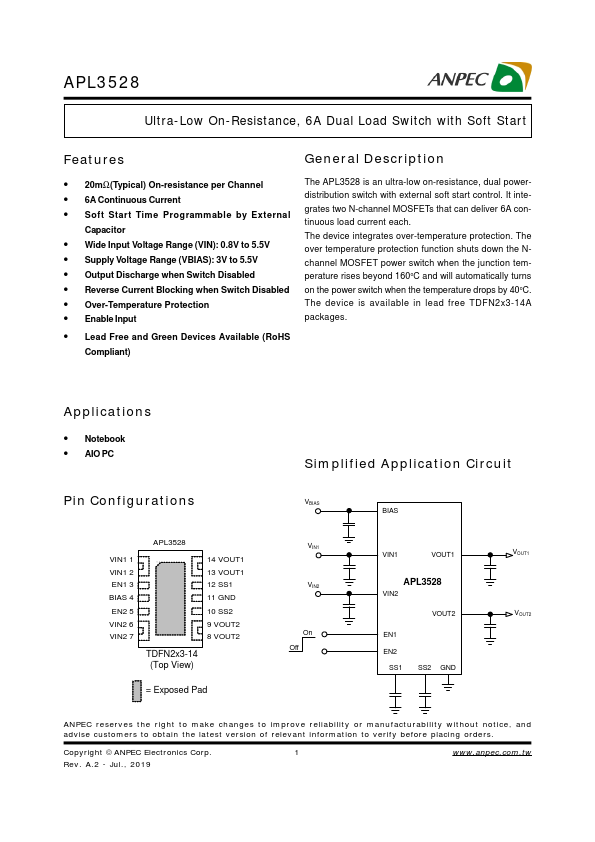

APL3528
APL3528 is 6A Dual Load Switch manufactured by ANPEC.
Features
General Description
- 20mΩ(Typical) On-resistance per Channel
The APL3528 is an ultra-low on-resistance, dual power-
- 6A Continuous Current distribution switch with external soft start control. It inte-
- Soft Start Time Programmable by External grates two N-channel MOSFETs that can deliver 6A con- tinuous load current each.
Capacitor
The device integrates over-temperature protection. The
- Wide Input Voltage Range (VIN): 0.8V to 5.5V over temperature protection function shuts down the N-
- Supply Voltage Range (VBIAS): 3V to 5.5V channel MOSFET power switch when the junction tem-
- Output Discharge when Switch Disabled perature rises beyond 160o C and will automatically turns
- Reverse Current Blocking when Switch Disabled on the power switch when the temperature drops by 40o C.
- Over-Temperature Protection
The device is available in lead free TDFN2x3-14A
- Enable Input packages.
- Lead Free and Green Devices Available (Ro HS pliant)
Applications
- Notebook
- AIO PC
Simplified Application Circuit
Pin Configurations
VIN1 1 VIN1 2 EN1 3 BIAS 4 EN2 5 VIN2 6 VIN2 7
14 VOUT1 13 VOUT1 12 SS1 11 GND 10 SS2 9 VOUT2 8 VOUT2
TDFN2x3-14 (Top View)
= Exposed Pad
VBIAS
VIN1 VIN2
On Off
BIAS
VIN1
VOUT1
VIN2
VOUT2
EN1 EN2
SS1
SS2 GND
VOUT1 VOUT2
ANPEC reserves the right to make changes to improve reliability or manufacturability without notice, and advise customers to obtain the latest version of relevant information to verify before placing orders.
