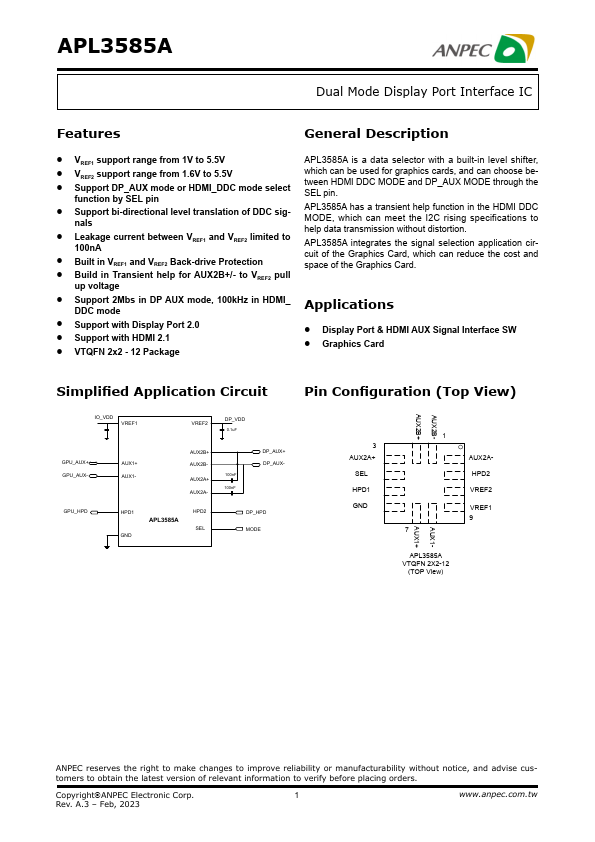

Anpec Electronics APL3585A
APL3585A is a data selector with a built-in level shifter, VREF2 support range from 1.6V to 5.5V Support DP_AUX mode or HDMI_DDC mode select function by SEL pin which can be used for graphics cards, and can choose between HDMI DDC MODE and DP_AUX MODE through the SEL pin. Support bi-directional level translation of DDC signals APL3585A has a transient help function in the HDMI DDC MODE, which can meet the I2C rising specifications to help data transmission without distortion.| Part No. | APL3585A |
|---|---|
| Datasheet | APL3585A Download |
| Manufacturer |  Anpec Electronics |
| Description | Dual Mode Display Port Interface IC |
| Buy | Stock & Price |
FEATURES
GENERAL DESCRIPTION
● VREF1 support range from 1V to 5.5V APL3585A is a data selector with a built-in level shifter,●
● VREF2 support range from 1.6V to 5.5V Support DP_AUX mode or HDMI_DDC mode select function by SEL pin which can be used for graphics cards, and can choose between HDMI DDC MODE and DP_AUX MODE through the SEL pin.
●
● Leakage current between VREF1 and VREF2 limited to 100nA APL3585A integrates the signal selection application circuit of the Graphics Card, which can reduce the cost and
● Built in VREF1 and VREF2 Back-drive Protection space of the Graphics Card.
● Build in Transient help for AUX2B+/- to VREF2 pull up voltage
● Support 2Mbs in DP AUX mode, 100kHz in HDMI_ DDC mode
APPLICATIONS
● Support with Display Port 2.0● Support with HDMI 2.1
● VTQFN 2x2 - 12 Package
● Display Port & HDMI AUX Signal Interface SW
● Graphics Card Simplified Application Circuit Pin Configuration (Top View) AUX2BAUX2B+ IO_VDD VREF1 VREF2 DP_VDD 0.1uF GPU_AUX+ GPU_AUX- GPU_HPD...
