APX9211 - Single-Phase Full-Wave Motor Driver

Datasheet Summary

Description

The APX9211 is a single phase full wave DC brushless motor driver with PWM variable speed control, current limit, and soft-start

Features

  • Single Phase Full Wave Fan Driver.
  • Low Quiescent Current (6mA Typical).
  • Built-in Variable Speed Function.
  • Minimum Speed Setting.
  • Built-In Current Limit Circuit (1.8A Typical).
  • Built-In Lock Protection and Auto Restart Function.
  • Soft-Start Function.
  • FG (Rotation Speed Detection).
  • Built-In Thermal Protection Circuit.
  • Lead Free and Green Devices Available (RoHS Compliant) General.

📥 Download Datasheet

Datasheet preview – APX9211

Datasheet Details

Part number APX9211
Manufacturer ANPEC
File Size 532.53 KB
Description Single-Phase Full-Wave Motor Driver
Datasheet download datasheet APX9211 Datasheet
Additional preview pages of the APX9211 datasheet.

📁 Similar Datasheet

  • APX9131 - Hall Effect Micro Switch (Anpec Electronics)
  • APX9132 - Hall Effect Micro Switch (Anpec Electronics)
  • APX9136 - Hall Effect Micro Switch (Anpec Electronics)
  • APX9141 - Hall-Effect Sensor (Anpec Electronics)
  • APX9142 - Hall-Effect Sensor (Anpec Electronics)
  • APX9145 - Hall-Effect Sensor (Anpec Electronics)
  • APX1117 - 1A LOW DROPOUT POSITIVE ADJUSTABLE (Diodes Incorporated)
  • APX1690 - 9-Set Over Voltage Protector (Anpec Electronics)
  • APX321 - SINGLE/DUAL/QUAD OPERATIONAL AMPLIFIER (Diodes)
  • APX324 - SINGLE/DUAL/QUAD OPERATIONAL AMPLIFIER (Diodes)
Other Datasheets by ANPEC
  • APX9212 - Single-Phase Full-Wave Motor Driver
  • APX9216 - Single-Phase Full-Wave Motor Driver
  • APX9200 - Single-Phase Full-Wave Motor Driver
  • APX9201 - Single-Phase Full-Wave Motor Driver
  • APX9202 - Single-Phase Full-Wave Motor Driver
  • APX9202A - Single-Phase Full-Wave Motor Driver
  • APX9202D - Single-Phase Full-Wave Motor Driver
  • APX9203 - Single-Phase Full-Wave Motor Driver

Full PDF Text Transcription

Click to expand full text

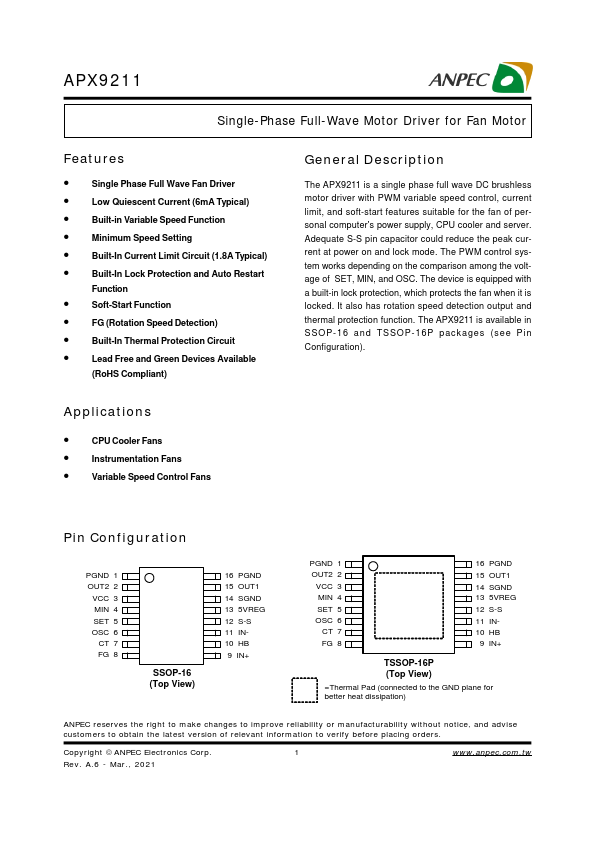

APX9211 Single-Phase Full-Wave Motor Driver for Fan Motor Features • Single Phase Full Wave Fan Driver • Low Quiescent Current (6mA Typical) • Built-in Variable Speed Function • Minimum Speed Setting • Built-In Current Limit Circuit (1.8A Typical) • Built-In Lock Protection and Auto Restart Function • Soft-Start Function • FG (Rotation Speed Detection) • Built-In Thermal Protection Circuit • Lead Free and Green Devices Available (RoHS Compliant) General Description The APX9211 is a single phase full wave DC brushless motor driver with PWM variable speed control, current limit, and soft-start features suitable for the fan of personal computer’s power supply, CPU cooler and server. Adequate S-S pin capacitor could reduce the peak current at power on and lock mode.
