AP Memory APS25608N-OBR
The APS25608N-OBRx is available in mini-BGA 24L package 6 x 8 x 1.2mm, ball pitch 1.0mm, ball size 0.4mm, package code “BD”.| Part No. | APS25608N-OBR |
|---|---|
| Datasheet | APS25608N-OBR Download |
| Manufacturer | AP Memory |
| Description | Double-Data-Rate Octal SPI PSRAM |
| Buy | Stock & Price |

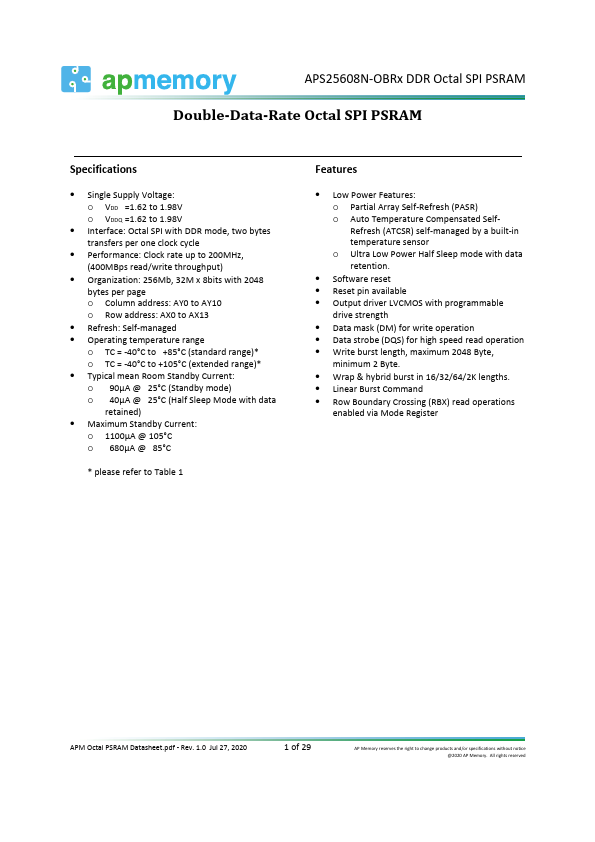

FEATURES
● Low PowerFEATURES
: o Partial Array Self-Refresh (PASR) o Auto Temperature Compensated SelfRefresh (ATCSR) self-managed by a built-in temperature sensor o Ultra Low Power Half Sleep mode with data retention.● Software reset
● Reset pin available
● Output driver LVCMOS with programmable drive strength
● Data mask (DM) for write operation
● Data strobe (DQS) for high speed read operation
● Write burst length, maximum 2048 Byte, minimum 2 Byte.
● Wrap & hybrid burst in 16/32/64/2K lengths.
● Linear Burst Command
● Row Boundary Crossing (RBX) read operations enabled via Mode Register APM Octal PSRAM Datasheet.pdf - Rev. 1.0 Jul 27, 2020 1 of 29 AP Memory reserves the right to change products and/or specifications without notice @2020 AP Memory. All rights reserved APS25608N-OBRx DDR Octal SPI PSRAM 2 Package Information 2.1 Package Types : BGA 24b X8 (BD)
● Ball Assignment for MINIBGA 24L 1 2 3 4 5 A NC CE# RST# NC B NC CLK NC NC NC DQS/ C VSS RFU ADQ2 NC DM D VDD ADQ1 ADQ0 ADQ3 ADQ4 E ADQ7 ADQ6 ADQ5 VDD VSS Top View (Ball Down) (6x8x1.2mm)(P1.0)(B0.4) Note: 1.
