ARTERY AT32F402CBU7
The AT32F405/402 series are based on the high-performance ARM®Cortex®-M4 32-bit RISC core operating at a frequency of up to 216 MHz. The Cortex®-M4 core features a single-precision Floating Point Unit (FPU) supporting all ARM® single-precision data processing instructions and data types. It also implements a full set of DSP instructions and a memory protection unit (MPU) that enhances application security.| Part No. | AT32F402CBU7 |
|---|---|
| Datasheet | AT32F402CBU7 Download |
| Manufacturer | ARTERY |
| Description | 32-bit MCU |
| Buy | Stock & Price |

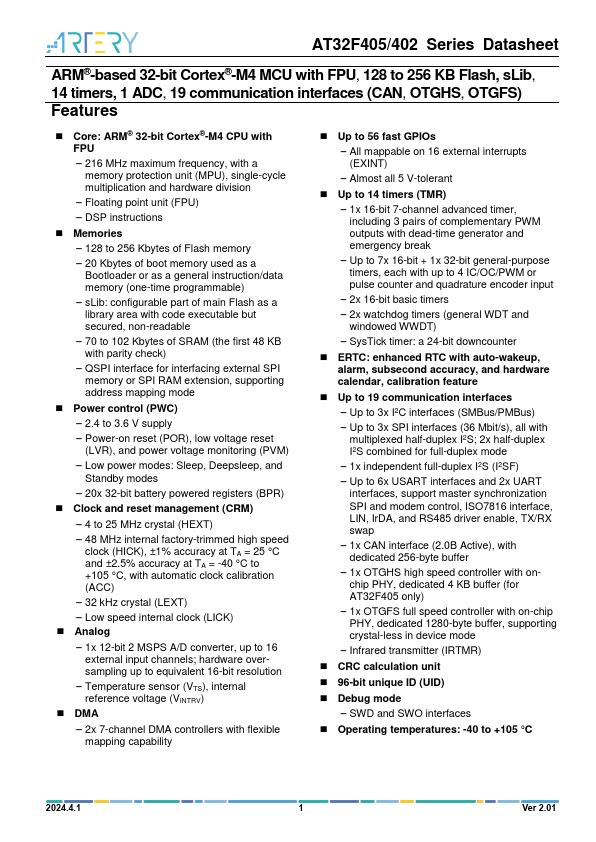

FEATURES
● Core: ARM® 32-bit Cortex®-M4 CPU with FPU − 216 MHz maximum frequency, with a memory protection unit (MPU), single-cycle multiplication and hardware division − Floating point unit (FPU) − DSP instructions● Memories − 128 to 256 Kbytes of Flash memory − 20 Kbytes of boot memory used as a Bootloader or as a general instruction/data memory (one-time programmable) − sLib: configurable part of main Flash as a library area with code executable but secured, non-readable − 70 to 102 Kbytes of SRAM (the first 48 KB with parity check) − QSPI interface for interfacing external SPI memory or SPI RAM extension, supporting address mapping mode
● Power control (PWC) − 2.4 to 3.6 V supply − Power-on reset (POR), low voltage reset (LVR), and power voltage monitoring (PVM) − Low power modes: Sleep, Deepsleep, and Standby modes − 20x 32-bit battery powered registers (BPR)
● Clock and reset management (CRM) − 4 to 25 MHz crystal (HEXT) − 48 MHz internal factory-trimmed high speed clock (HICK),...
