ARTERY AT32F437ZMT7

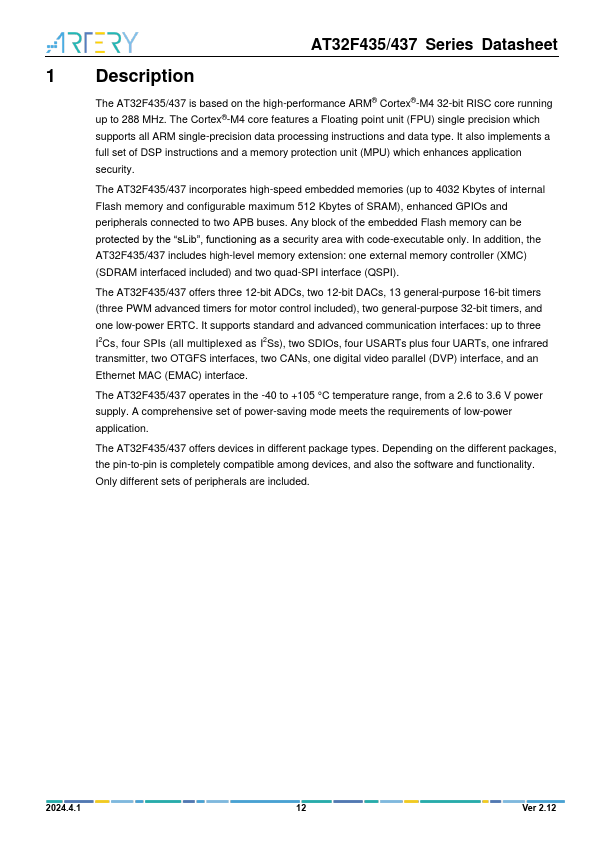

The AT32F435/437 is based on the high-performance ARM® Cortex®-M4 32-bit RISC core running up to 288 MHz. The Cortex®-M4 core features a Floating point unit (FPU) single precision which supports all ARM single-precision data processing instructions and data type. It also implements a full set of DSP instructions and a memory protection unit (MPU) which enhances application security.| Part No. | AT32F437ZMT7 |
|---|---|
| Datasheet | AT32F437ZMT7 Download |
| Manufacturer | ARTERY |
| Description | 32-bit MCU+FPU |
| Buy | Stock & Price |

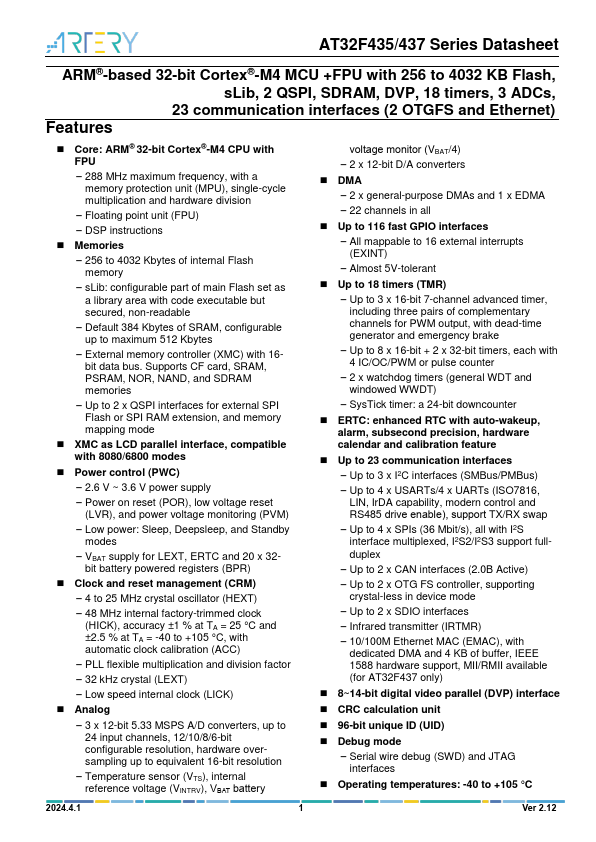

FEATURES
● Core: ARM® 32-bit Cortex®-M4 CPU with FPU − 288 MHz maximum frequency, with a memory protection unit (MPU), single-cycle multiplication and hardware division − Floating point unit (FPU) − DSP instructions● Memories − 256 to 4032 Kbytes of internal Flash memory − sLib: configurable part of main Flash set as a library area with code executable but secured, non-readable − Default 384 Kbytes of SRAM, configurable up to maximum 512 Kbytes − External memory controller (XMC) with 16bit data bus. Supports CF card, SRAM, PSRAM, NOR, NAND, and SDRAM memories − Up to 2 x QSPI interfaces for external SPI Flash or SPI RAM extension, and memory mapping mode
● XMC as LCD parallel interface, compatible with 8080/6800 modes
● Power control (PWC) − 2.6 V ~ 3.6 V power supply − Power on reset (POR), low voltage reset (LVR), and power voltage monitoring (PVM) − Low power: Sleep, Deepsleep, and Standby modes − VBAT supply for LEXT, ERTC and 20 x 32bit battery powered registers (BPR)
● Clock and...
