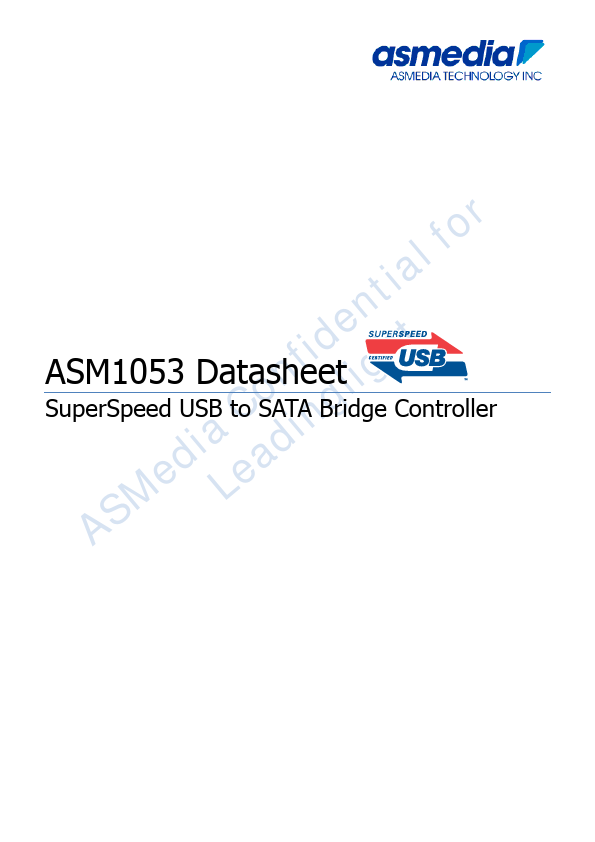

ASM1053 Datasheet PDF

ASMedia ASM1053

ASM1053 is the ASMedia 2nd generation single chip solution to bridge the SuperSpeed USB (USB3.0) and High Speed USB (USB2.0) to Serial ATA host interface. It is highly integrated with ASMedia SuperSpeed USB3.0, High Speed USB2.0 and SATA1.5/3.0 Gbps self-design PHYs. The following notations are used to describe the signal type.

Part No.	ASM1053
Datasheet	ASM1053 Download
Manufacturer	ASMedia
Description	SuperSpeed USB to SATA Bridge Controller
Buy	Stock & Price

GENERAL DESCRIPTION

Customers can easily enhaced their storage device performace via ASM1053 since it is also integrated 8-bit micro-processor and embedded RAM to provide a leading edge solution in USB to SATA device enclosure market.

FEATURES

for Compliant with USB3.0 Specification Revision 1.0 l Compliant with USB Specification Revision 2.0 ia Support USB Super-Speed, High-Speed and Full-Speed Operation t Support USB Mass Storage Class, Bulk-Only Transport Specification Revision 1.3 n Support UAS Attached SCSI Protocol Specification Revision 1.0 e Compliance with Serial ATA Specification Revision 2.6 id t Support Spread Spectrum Control of USB3.0 and SATA interface to improve the EMI performance f h Support ATA/ATAPI Packet Command Set on lig Support ATA/ATAPI LBA48 addressing mode Integrated 8-bit micro-processor with embedded program RAM and ROM Support SPI NVRAM for Vender Specific Application of USB Device Controller C g Support multi-GPIO pins ia in Sup...
