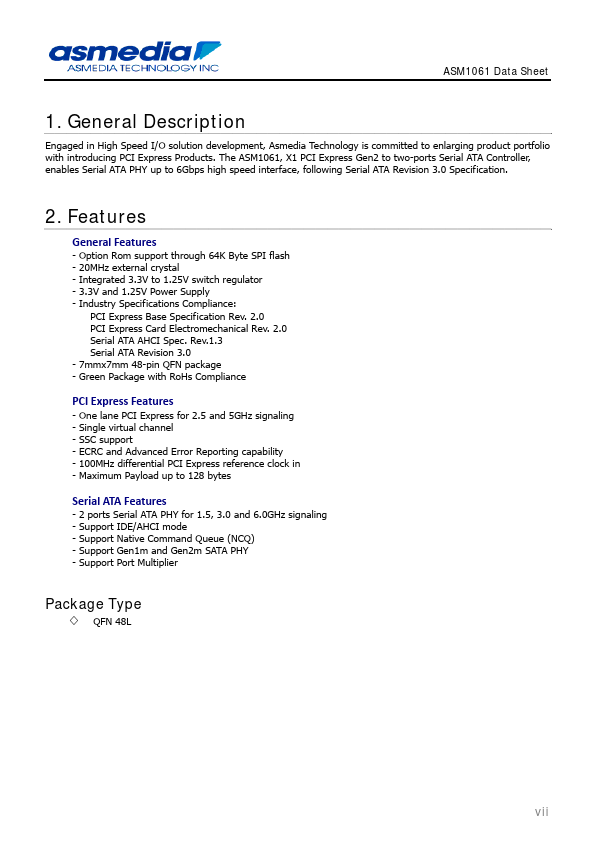

GENERAL DESCRIPTION
Engaged in High Speed I/O solution development, Asmedia Technology is committed to enlarging product portfolio with introducing PCI Express Products. 2. FEATURES
GENERAL FEATURES
- Option Rom support through 64K Byte SPI flash - 20MHz external crystal - Integrated 3.3V to 1.25V switch regulator - 3.3V and 1.25V Power Supply - Industry Specifications Compliance: PCI Express Base Specification Rev. 2.0 PCI Express Card Electromechanical Rev. 2.0 Serial ATA AHCI Spec. Rev.1.3 Serial ATA Revision 3.0 - 7mmx7mm 48-pin QFN package - Green Package with RoHs Compliance PCI Express FEATURES
- One lane PCI Express for 2.5 and 5GHz signaling - Single virtual channel - SSC support - ECRC and Advanced Error Reporting capability - 100MHz differential PCI Express reference clock in - Maximum Payload up to 128 bytes Serial ATA FEATURES
- 2 ports Serial ATA PHY for 1.5, 3.0 and 6.0GHz signaling - Support IDE/AHCI mode - Support Native Command Queue (NCQ) - Support Gen1m and Gen2m SATA PHY - Support Port Multiplier Package Type QFN 48L vii 3.
