ASMedia ASM1074
The ASM1074, the four downstream ports USB3.0 HUB Controller, highly integrated with ASMedia SuperSpeed USB3.0 and USB2.0 self-design PHYs, enables high speed PHY interface up to 5Gbps, following Universal Series Bus 3.0 Revision 1.0 Specification, supporting battery charge for portable device, following battery charge Revision 1.2.
| Part No. |
ASM1074 |
| Datasheet |
ASM1074
Download
|
| Manufacturer |
 ASMedia |
| Description |
USB3.0 HUB Controller |
| Buy |
Stock & Price
|

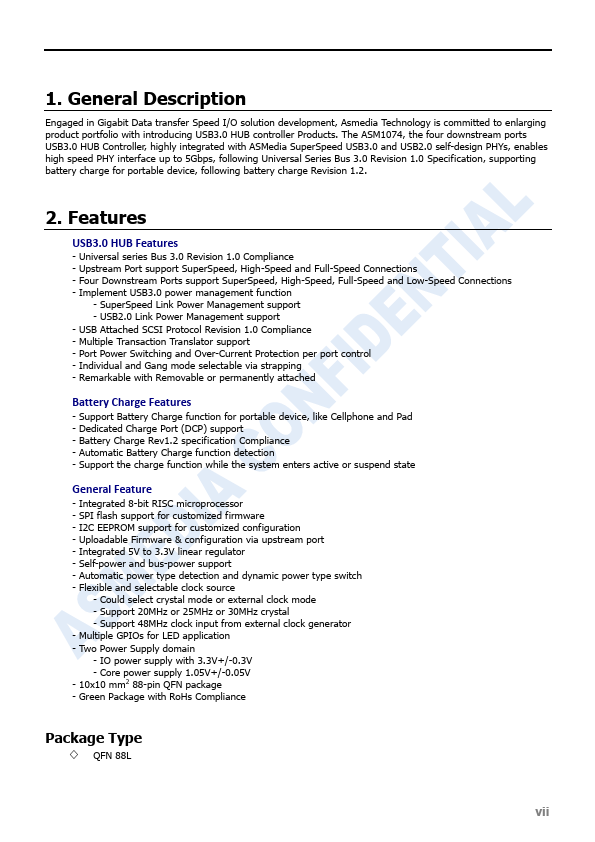

GENERAL DESCRIPTION
Engaged in Gigabit Data transfer Speed I/O solution development, Asmedia Technology is committed to enlarging product portfolio with introducing USB3.0 HUB controller Products. 2. FEATURES
USB3.0 HUB FEATURES
- Universal series Bus 3.0 Revision 1.0 Compliance - Upstream Port support SuperSpeed, High-Speed and Full-Speed Connections - Four Downstream Ports support SuperSpeed, High-Speed, Full-Speed and Low-Speed Connections - Implement USB3.0 power management function - SuperSpeed Link Power Management support - USB2.0 Link Power Management support - USB Attached SCSI Protocol Revision 1.0 Compliance - Multiple Transaction Translator support - Port Power Switching and Over-Current Protection per port control - Individual and Gang mode selectable via strapping - Remarkable with Removable or permanently attached Battery Charge FEATURES
- Support Battery Charge function for portable device, like Cellphone and Pad - Dedicated Charge Port (DCP) support - Battery Charge Re...
