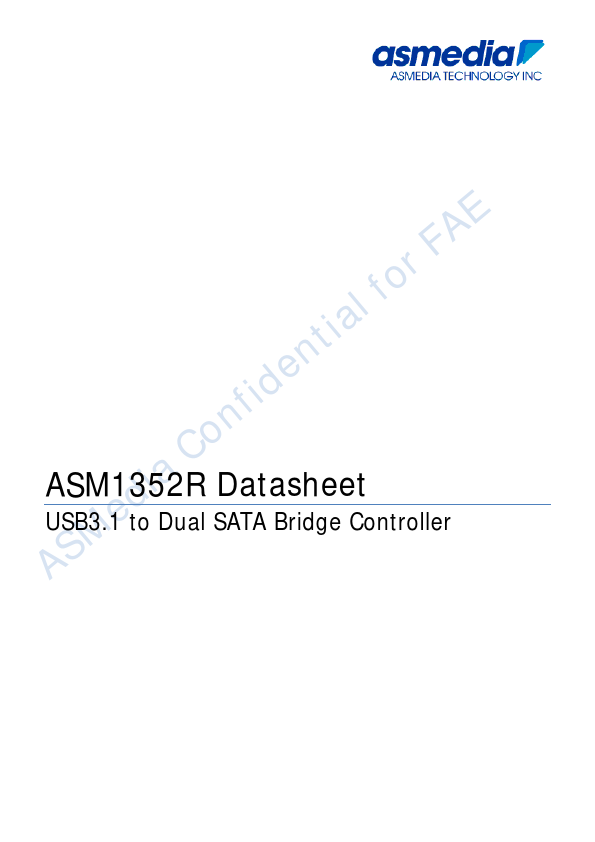

ASM1352R Datasheet PDF

ASMedia ASM1352R

ASM1352R is ASMedia’s single chip solution to bridge the USB 3.1 to dual SATA interface. It is highly integrated with ASMedia SuperSpeedPlus, SuperSpeed, and High-Speed and SATA self-designed PHYs. ASM1352R is useful for USB to SATA port expansion and E performance boost, not only for internal design but also for external storage application.

Part No.	ASM1352R
Datasheet	ASM1352R Download
Manufacturer	ASMedia
Description	USB3.1 to Dual SATA Bridge Controller
Buy	Stock & Price

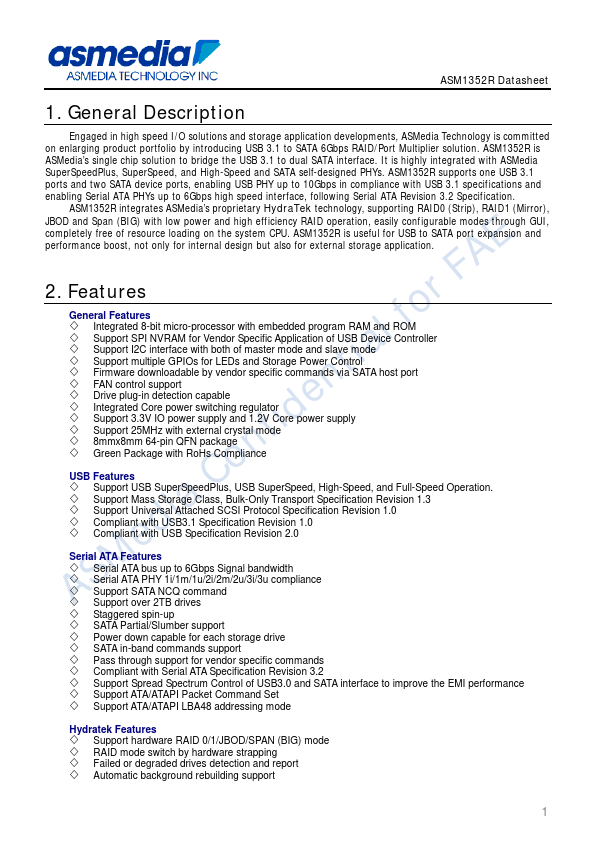

GENERAL DESCRIPTION

Engaged in high speed I/O solutions and storage application developments, ASMedia Technology is committed on enlarging product portfolio by introducing USB 3.1 to SATA 6Gbps RAID/Port Multiplier solution. ASM1352R supports one USB 3.1 ports and two SATA device ports, enabling USB PHY up to 10Gbps in compliance with USB 3.1 specifications and enabling Serial ATA PHYs up to 6Gbps high speed interface, following Serial ATA Revision 3.2 Specification. ASM1352R integrates ASMedia’s proprietary HydraTek technology, supporting RAID0 (Strip), RAID1 (Mirror), JBOD and Span (BIG) with low power and high efficiency RAID operation, easily configurable modes through GUI, completely free of resource loading on the system CPU. 2.

FEATURES

or FA

GENERAL FEATURES

f  Integrated 8-bit micro-processor with embedded program RAM and ROM l  Support SPI NVRAM for Vendor Specific Application of USB Device Controller ia  Support I2C interface with both of master mode and slave mode  Supp...
