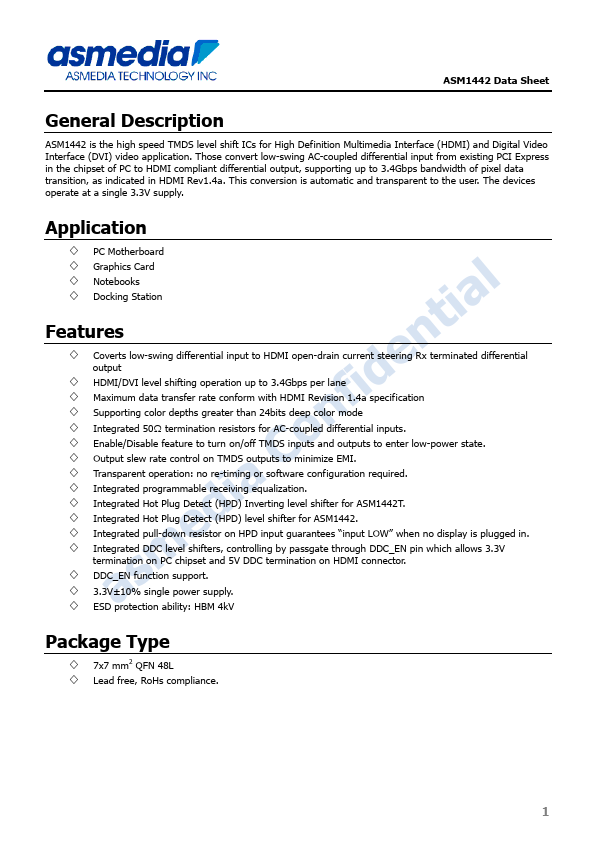

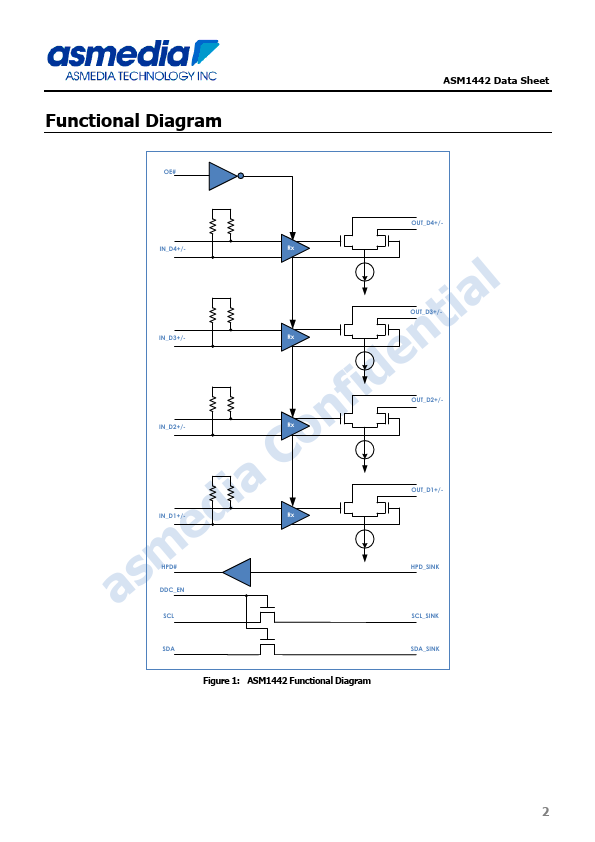

GENERAL DESCRIPTION
Those convert low-swing AC-coupled differential input from existing PCI Express in the chipset of PC to HDMI compliant differential output, supporting up to 3.4Gbps bandwidth of pixel data transition, as indicated in HDMI Rev1.4a. The devices operate at a single 3.3V supply. Application PC Motherboard Graphics Card Notebooks l Docking Station FEATURES
ntia Coverts low-swing differential input to HDMI open-drain current steering Rx terminated differential e output id HDMI/DVI level shifting operation up to 3.4Gbps per lane Maximum data transfer rate conform with HDMI Revision 1.4a specification f Supporting color depths greater than 24bits deep color mode n Integrated 50Ω termination resistors for AC-coupled differential inputs. o Enable/Disable feature to turn on/off TMDS inputs and outputs to enter low-power state. Output slew rate control on TMDS outputs to minimize EMI. C Transparent operation: no re-timing or software configuration requir...
