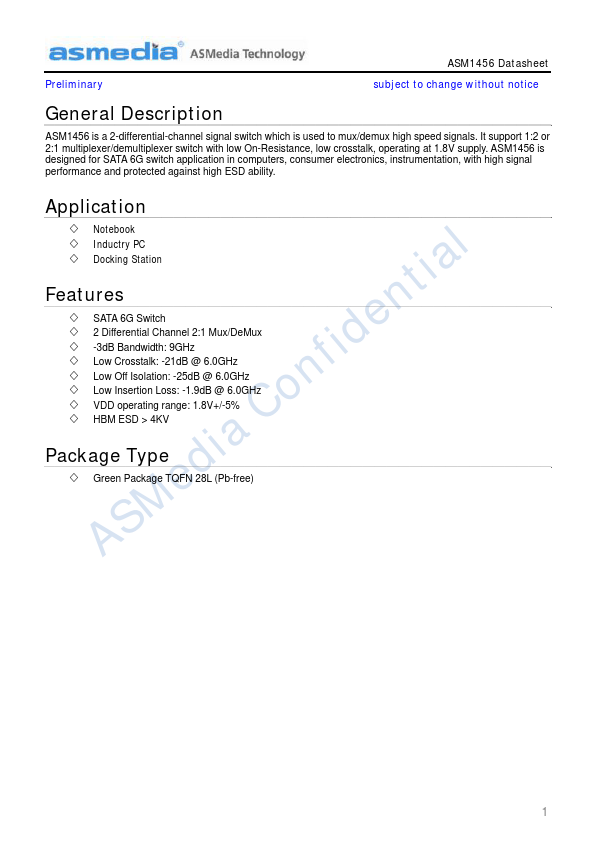

GENERAL DESCRIPTION
Application Notebook Inductry PC l Docking Station tia FEATURES
n SATA 6G Switch e 2 Differential Channel 2:1 Mux/DeMux id -3dB Bandwidth: 9GHz f Low Crosstalk: -21dB @ 6.0GHz Low Off Isolation: -25dB @ 6.0GHz n Low Insertion Loss: -1.9dB @ 6.0GHz o VDD operating range: 1.8V+/-5% C HBM ESD > 4KV ia Package Type ASMed Green Package TQFN 28L (Pb-free) 1 Preliminary Functional Diagram ASM1456 Datasheet subject to change without notice ntial Figure 1: Functional Diagram of ASM1456 fide Truth Table n SEL o L ASMedia C H Descriptions (A±, B±) to (A1±, B1±) (A±, B±) to (A2±, B2±) 2 Preliminary Pinout Diagrams ASM1456 Datasheet subject to change without notice ia Confidential Figure 2: ASM1456 Pinout ed Pin Descriptions M This section provides a detailed description of each signal. The following notations are used to describe the signal S type. A Pin Name Descriptions A±, B±, A1±, B1±, A2±, B2± Data Signals SEL Select Input VDD Power VSS Ground 3 Pre...
