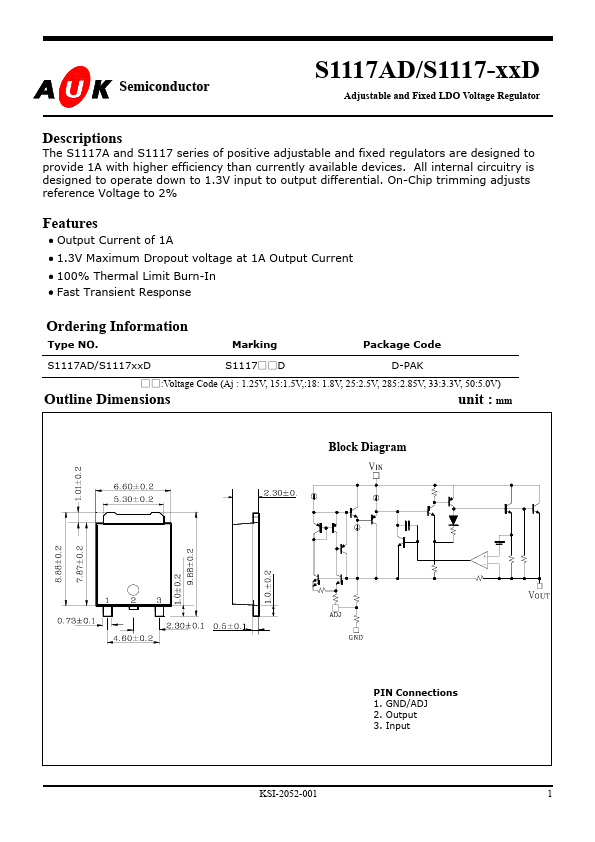

S1117-1.5D
S1117-1.5D is Adjustable and Fixed LDO Voltage Regulator manufactured by Kodenshi AUK Group.
- Part of the S1117A comparator family.
- Part of the S1117A comparator family.
Features
- Output Current of 1A
- 1.3V Maximum Dropout voltage at 1A Output Current
- 100% Thermal Limit Burn-In
- Fast Transient Response
Ordering Information
Type NO.
Marking
Package Code
S1117AD/S1117xx D
S1117-
- D
D-PAK
- - :Voltage Code (Aj : 1.25V, 15:1.5V,:18: 1.8V, 25:2.5V, 285:2.85V, 33:3.3V, 50:5.0V)
Outline Dimensions unit : mm
Block Diagram
PIN Connections 1. GND/ADJ 2. Output 3. Input
KSI-2052-001
S1117AD/S1117-xx D
Absolute Maximum Ratings
Characteristic
Operating Input voltage
Power Dissipation (without Heatsink) Lead Temperature (Soldering, 10 sec) Operating Junction Temperature Storage Temperature
Symbol
PD TLEAD
TJ TSTG
Ratings
Vout =1.25,1.5,1.8 Vout = 2.5 2.8 3.3 5.0
-30 ~ 125
-55 ~ 150
Ta=25°C
Unit
V 20
W °C °C °C
Device Selection Guide...
