A035QN05-V1 Overview
Description

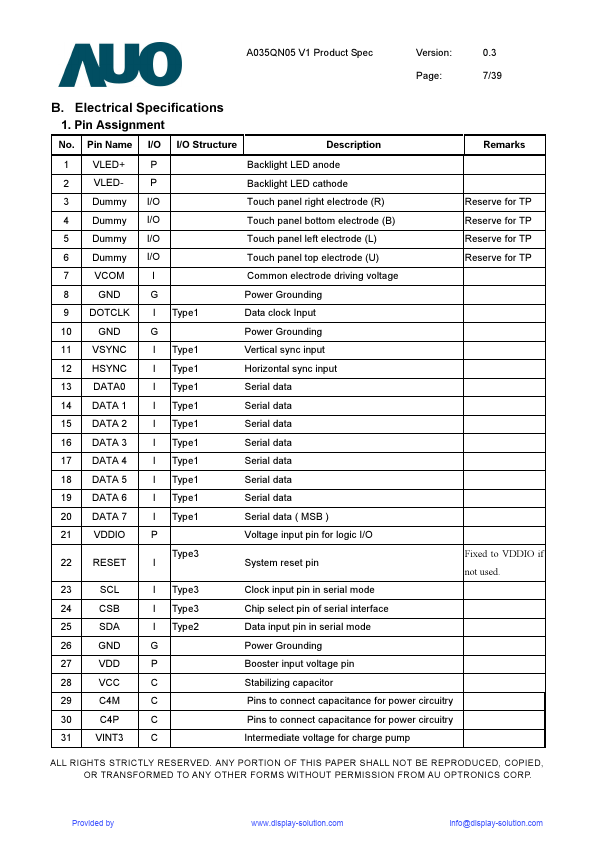

Remarks 1 VLED+ P Backlight LED anode 2 VLED- P Backlight LED cathode 3 Dummy I/O Touch panel right electrode (R) Reserve for TP 4 Dummy I/O Touch panel bottom electrode (B) Reserve for TP 5 Dummy I/O Touch panel left electrode (L) Reserve for TP 6 Dummy I/O Touch panel top electrode (U) Reserve for TP 7 VCOM I Common electrode driving voltage 8.
