B089AW01-V1 - WSVGA Color TFT-LCD

AU Optronics

General Description

2.1 General Specification 5 2.2 Optical Characteristics 6 3.

Functional Block Diagram 11 4.

Absolute Maximum Ratings 11 4.

📥 Download Datasheet

B089AW01-V1 wsvga color tft-lcd by AU Optronics - Datasheet Preview

Datasheet Details

Part number	B089AW01-V1
Manufacturer	AU Optronics
File Size	498.76 KB
Description	WSVGA Color TFT-LCD
Datasheet	B089AW01-V1 Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
B0802	Board to Board Connector	HR
B0809J50ATI	Impedance Matched Ultra Low profile 0805 Balun	Anaren Microwave
B083000RQC	8-Bit 3GSPS Analog-to-Digital Converter	Beijing Microelectronics
B084SN01	Module Specification for 8.4 Inch TFT LCD Modules	au
B084SN01-2	2.4 Inch SVGA Color TFT LCD Module	au

Other Datasheets by AU Optronics

Part Number	Description
B089AW01-V0	WSVGA Color TFT-LCD
B089AW01-V2	WSVGA Color TFT-LCD
B089AW01-V3	WSVGA Color TFT-LCD
B084SN02	SVGA Color TFT LCD

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

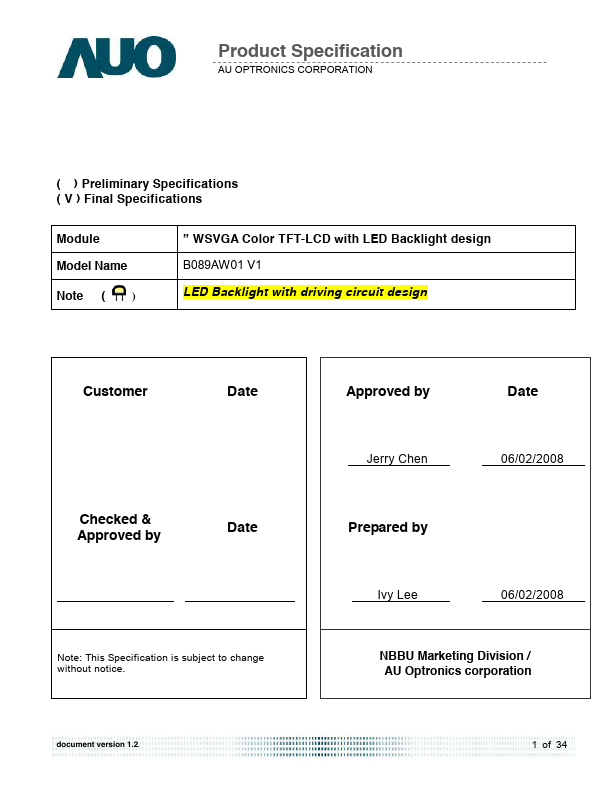

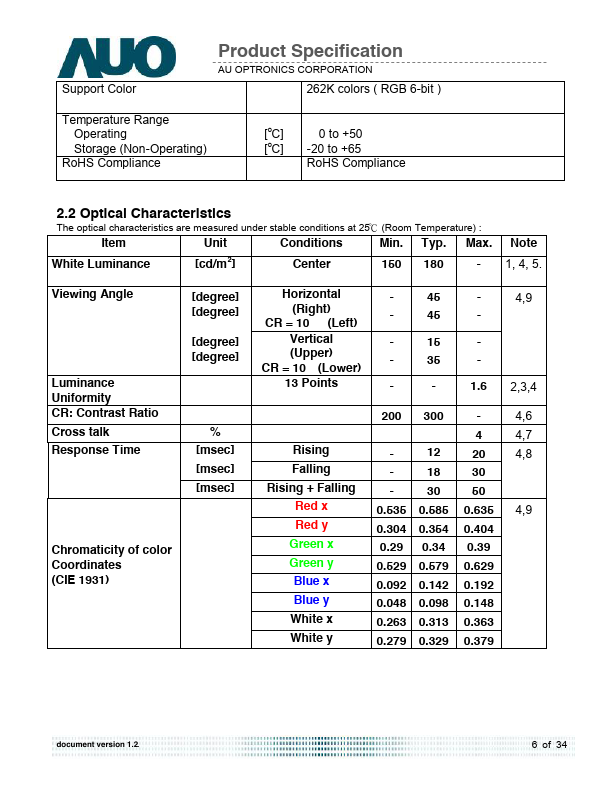

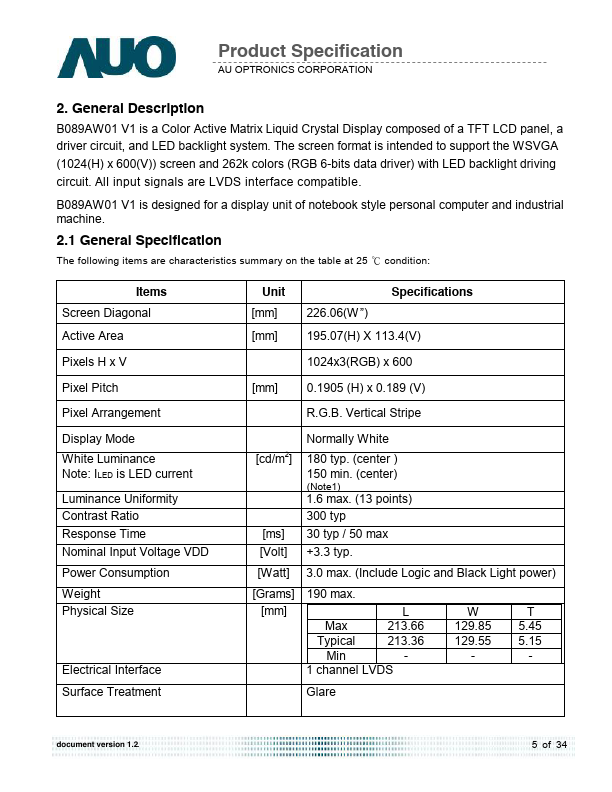

Product Specification AU OPTRONICS CORPORATION ( ) Preliminary Specifications ( V ) Final Specifications Module Model Name Note ( ) ” WSVGA Color TFT-LCD with LED Backlight design B089AW01 V1 LED Backlight with driving circuit design Customer Date Checked & Approved by Date Note: This Specification is subject to change without notice. document version 1.2. Approved by Date Jerry Chen 06/02/2008 Prepared by Ivy Lee 06/02/2008 NBBU Marketing Division / AU Optronics corporation 1 of 34 Product Specification AU OPTRONICS CORPORATION Contents 1. Handling Precautions................................................................................................................... 4 2. General Description ..........................................................................
