Datasheet Details
| Part number | B101EVN02.0 |
|---|---|
| Manufacturer | AU Optronics |
| File Size | 867.53 KB |
| Description | WXGA 16:10 Color TFT-LCD |
| Datasheet | B101EVN02.0-AUO.pdf |
|
|
Overview: Product Specification AU OPTRONICS CORPORATION () Preliminary Specifications (V ) Final Specifications Module Model Name Note 10.1”(10.07”) WXGA 16:10 Color TFT-LCD with LED Backlight design B101EVN02.0 LED Backlight with driving circuit design Color Management (Virtual and Rich Color Solution ) Dynamic Contrast Ratio (Power Saving Solution) Customer Date Approved by Date Checked & Approved by Date Kevin KH Shen 2/6/2012 Prepared by Jay Lin 2/6/2012 Note: This Specification is subject to change without notice. NBBU Marketing Division AU Optronics corporation B101EVT03 V0 Document Version : 0.5 1 of 31 Product Specification AU OPTRONICS CORPORATION Contents 1. Handling Precautions .............................................................. 4 2.
| Part number | B101EVN02.0 |
|---|---|
| Manufacturer | AU Optronics |
| File Size | 867.53 KB |
| Description | WXGA 16:10 Color TFT-LCD |
| Datasheet | B101EVN02.0-AUO.pdf |
|
|
|
................................................................

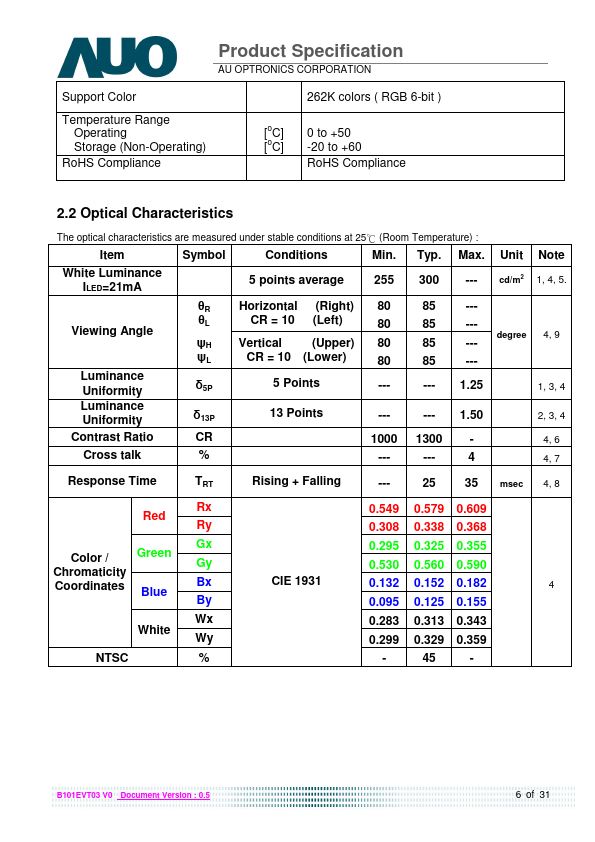

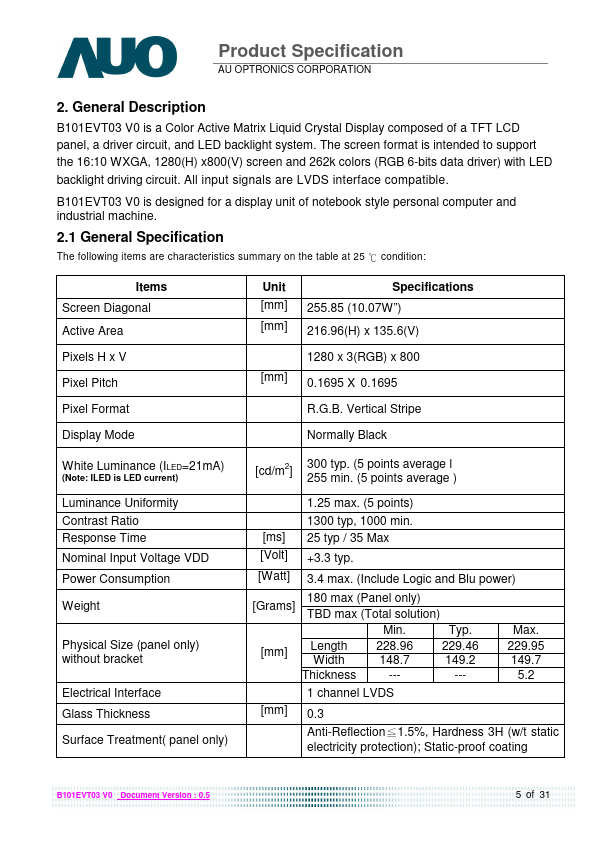

5 2.1 General Specification ..........................................................................................................................5 2.2 Optical Characteristics ........................................................................................................................6 3.
Functional Block Diagram .....................................................
