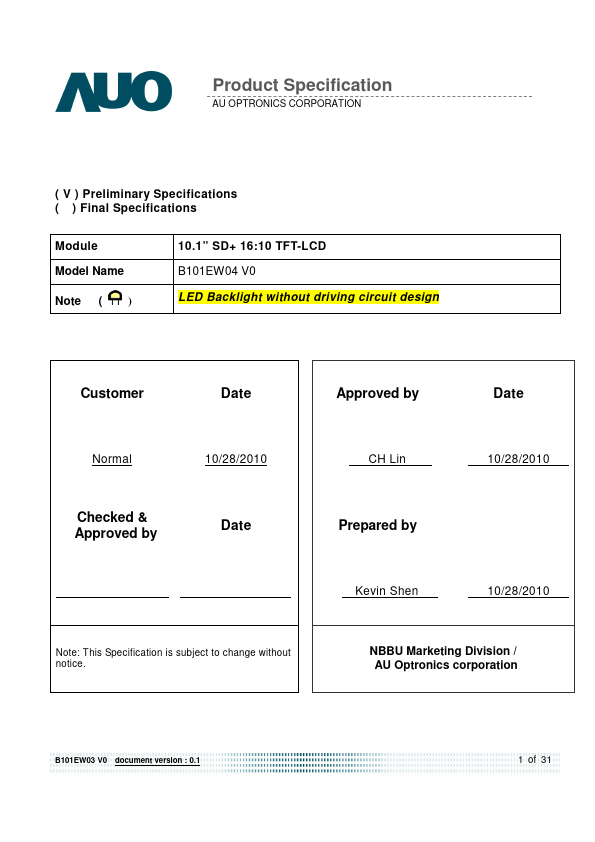

Datasheet Summary
Product Specification
AU OPTRONICS CORPORATION
( V ) Preliminary Specifications ( ) Final Specifications
Module Model Name Note ( )
10.1” SD+ 16:10 TFT-LCD B101EW04 V0 LED Backlight without driving circuit design
Customer
Date
Approved by
Date
Normal
10/28/2010
CH Lin
10/28/2010
Checked & Approved by
Date
Prepared by
Kevin Shen
10/28/2010
Note: This Specification is subject to change without notice.
NBBU Marketing Division / AU Optronics corporation
B101EW03 V0 document version : 0.1
1 of 31
Product Specification
AU OPTRONICS CORPORATION

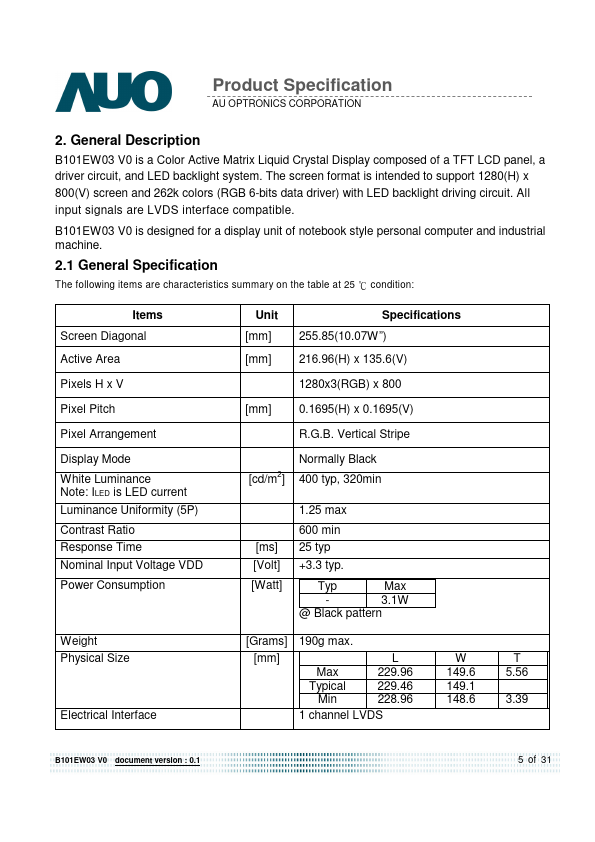

2. General Description
B101EW03 V0 is a Color Active Matrix Liquid Crystal Display posed of a TFT LCD panel, a driver circuit, and...
