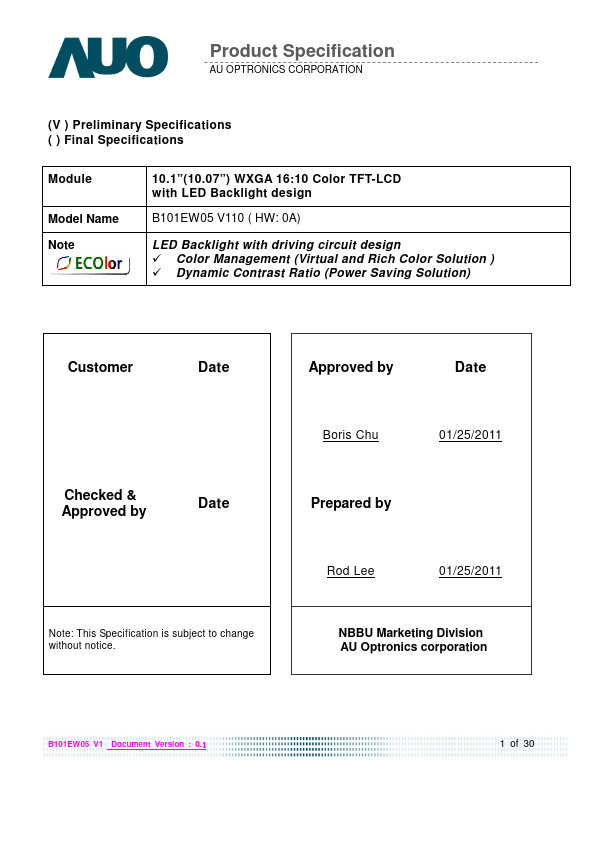

Description
5

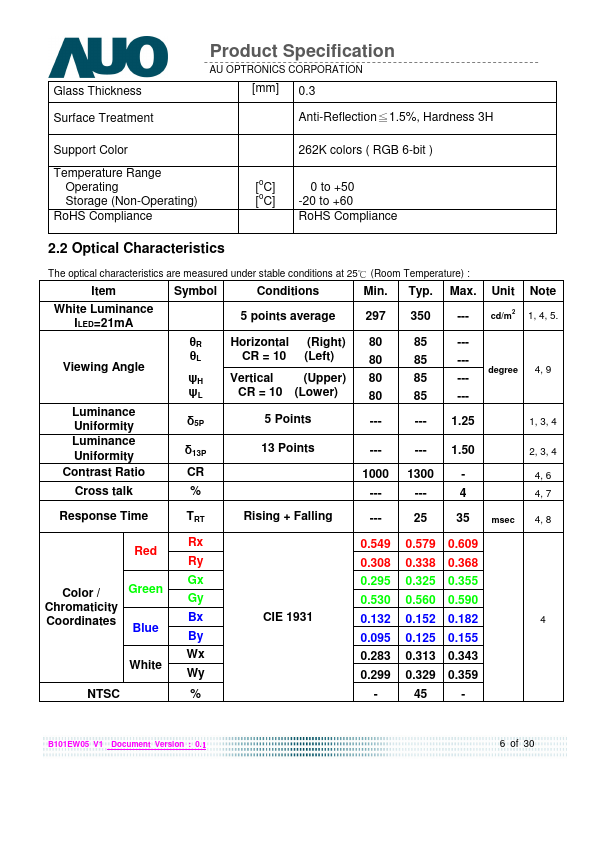

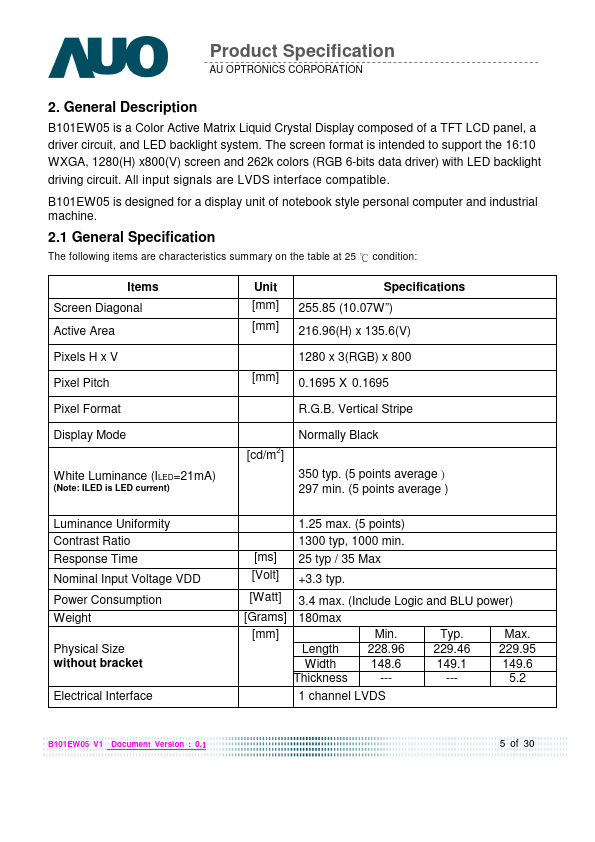

2.1 General Specification 5 2.2 Optical Characteristics 6
3. Functional Block Diagram 11 4. Absolute Maximum Ratings 12
4.1 Absolute Ratings of TFT LCD Module12 4.2 Absolute Ratings of Environment 12
5. Electrical Characteristics 13
5.1 TFT LCD Module13 5.2 Backlight Unit 15
6. Signal Interface Characteristic 17
6.1 Pixel Format Image 17 6.2 The Input Data Format 18 6.4 LVDS Interface Timing 6.3 Integration Interface Requirement 19 21
6.5 Power ON/OFF Sequence 23 7.1 Reliability Test
7
B101EW05-V110 Datasheet
